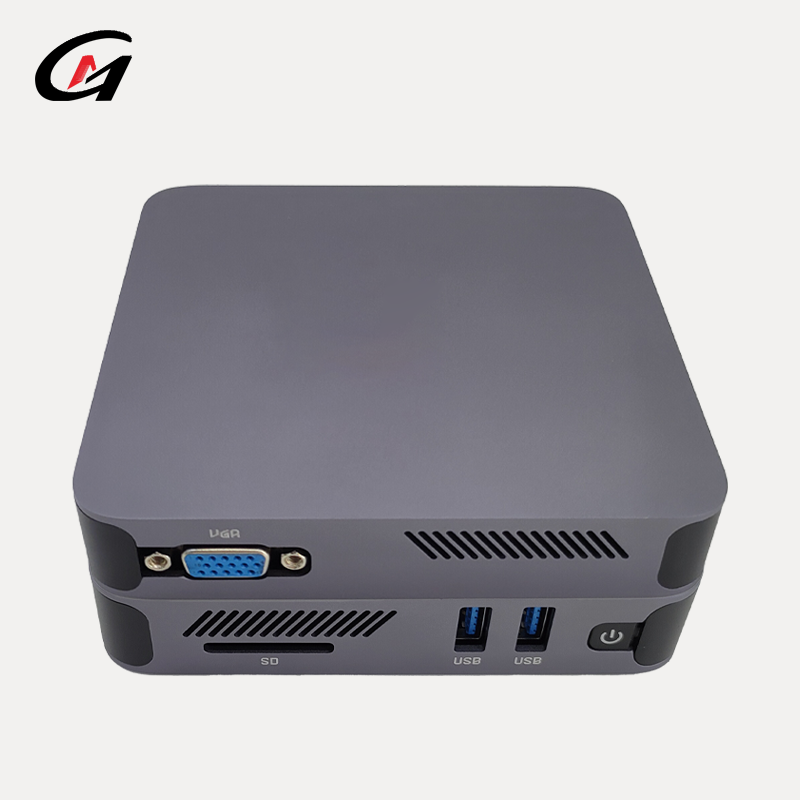

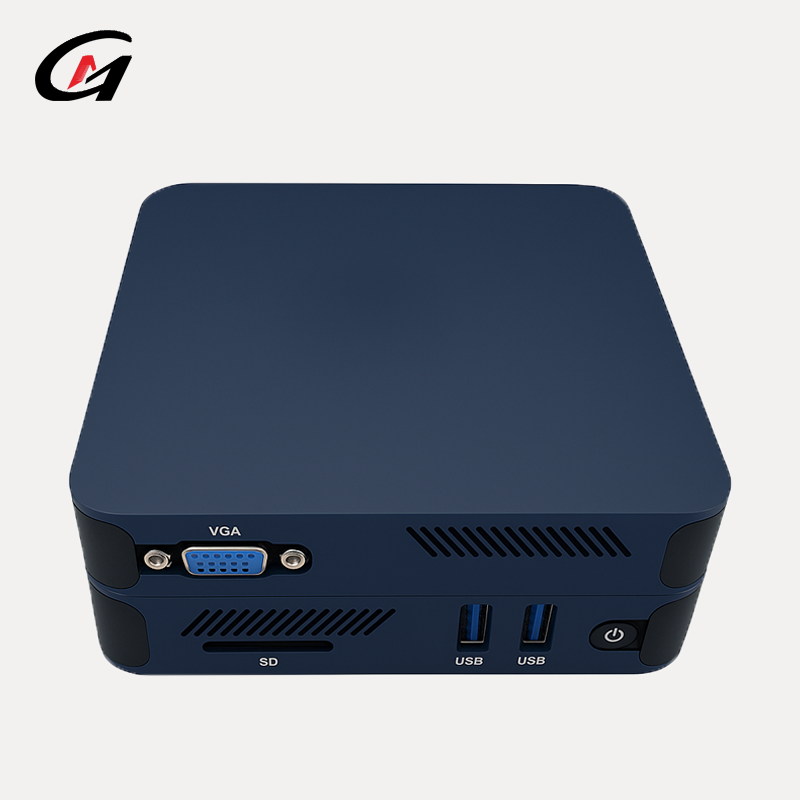

The LN-5105 is a compact, fanless mini PC powered by the Intel® N5105 quad-core processor, offering efficient performance in a silent and energy-saving form factor. With its all-metal sealed design and low-profile chassis, it is ideal for space-constrained environments, smart terminals, and digital signage.
This unit comes equipped with 8GB of memory and a 256GB SSD, along with dual-band WiFi, Bluetooth, and Gigabit LAN, supporting a wide range of wireless and wired connectivity. Its rich I/O options include HDMI-IN, HDMI-OUT, VGA, SD card slot, USB 3.0 ports, audio interfaces, and more.
The LN-5105 supports auto power-on, features wide voltage input (100–240V), and runs on Windows 10/11 or Linux. Its solid fanless structure ensures reliable operation in noise-sensitive or embedded scenarios.
Item Specification
Model LN-N5105
Processor (CPU) Intel® Gemini Lake Refresh N5105
Graphics Intel® UHD Graphics 600
RAM 8GB DDR4 (onboard)
Storage 256GB SSD
Networking WiFi AC3165 (802.11 a/b/g/n/ac, dual-band 2.4G + 5.8G)
LAN: 1 × 1000Mbps RJ45
Bluetooth 4.0

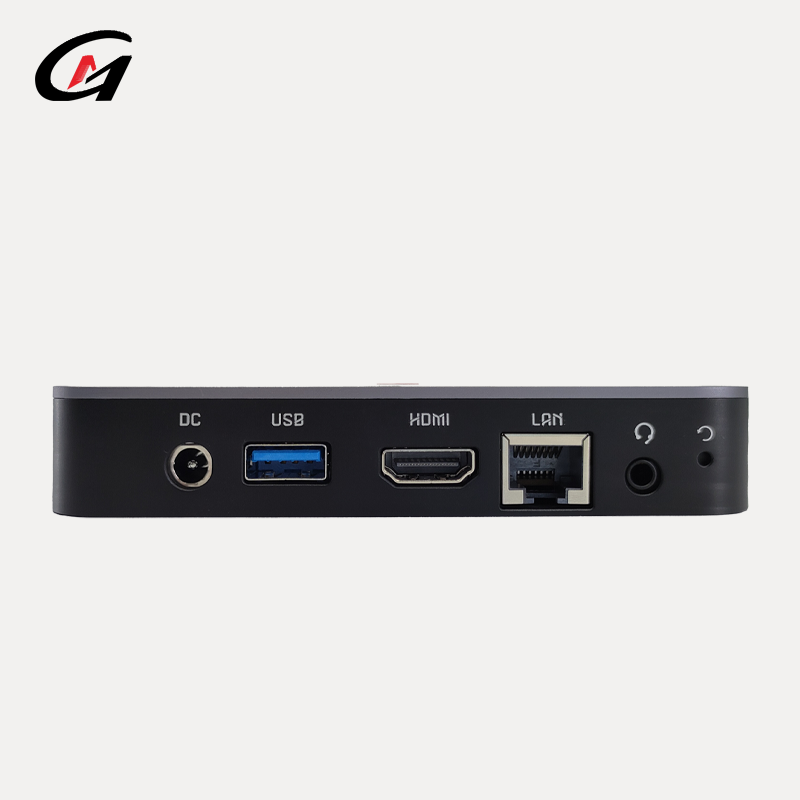

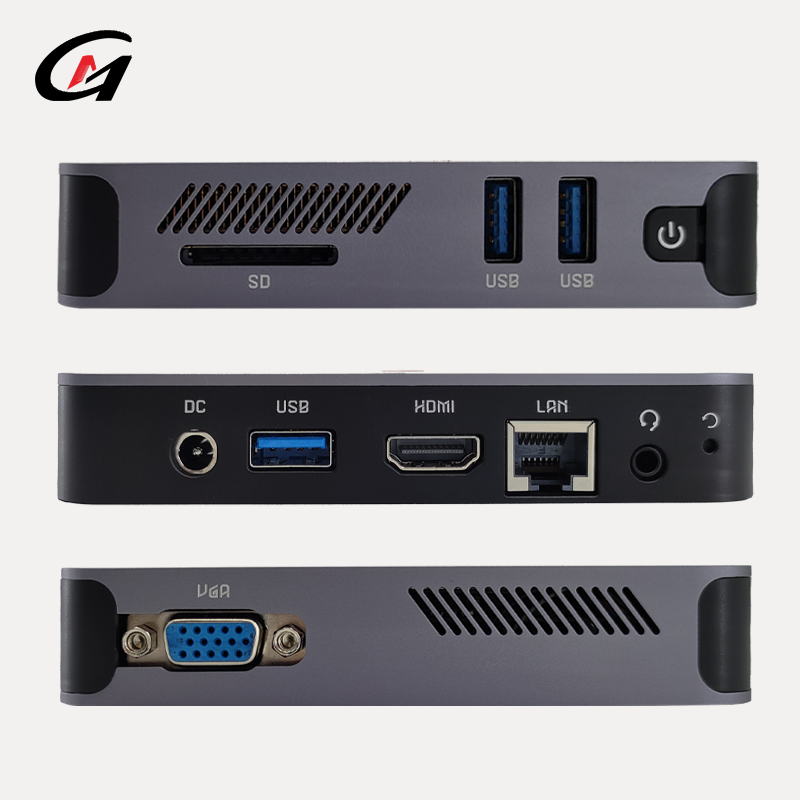

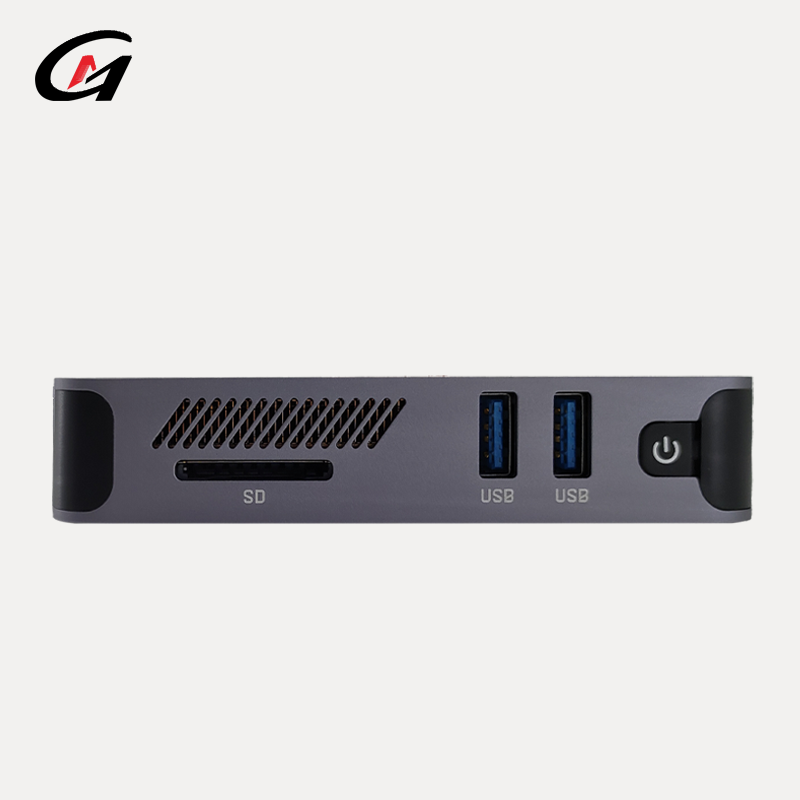

I/O Ports 1 × VGA port
1 × LAN port
1 × SD card slot
1 × Audio out
1 × Mic in
1 × Power input
1 × Power button
3 × USB 3.0
1 × HDMI-IN
1 × HDMI-OUT
Power Input 100–240V AC, 50/60Hz input
Output: DC 12V / 2A
Dimensions 120 × 120 × 23 mm
Operating System Windows 10 / Windows 11 / Linux
Special Features Fanless design
Compact body
Auto power-on supported
