The LN-1005 is a high-performance fanless industrial box PC designed for demanding industrial, networking, and IoT environments. Featuring an Intel® Celeron J6412 quad-core processor and up to 32GB DDR4 memory, it delivers powerful, reliable performance in a compact, rugged form factor.
Its full aluminum alloy enclosure and passive heat dissipation design ensure silent operation and durability in dusty, high-vibration, or electromagnetic-prone environments.
The system supports dual display output (HDMI + DP), 4 × 2.5G Intel LAN ports, and flexible expansion with Mini PCIe (WiFi/3G/4G), GPIO, and external TPM2.0. It also includes wide voltage DC input (9V–36V) and automatic power-on via signal detection, making it ideal for 24/7 embedded applications.
LN-1005 is a perfect choice for use in edge computing, industrial firewalls, SD-WAN, smart gateway, intelligent control systems, and more.
Item Specification
Model LN-1005
Processor (CPU) Intel® Celeron J6412 2.0GHz Quad-Core (compatible with Intel® Elkhart Lake series CPUs)
Chipset Intel®
Memory 1 × DDR4 3200MHz SO-DIMM, up to 32GB
Storage 1 × M.2 Key-M 2280 (SATA protocol)
1 × 2.5" SATA3.0 HDD/SSD
Display Output 1 × HDMI 2.0
1 × DisplayPort (DP)

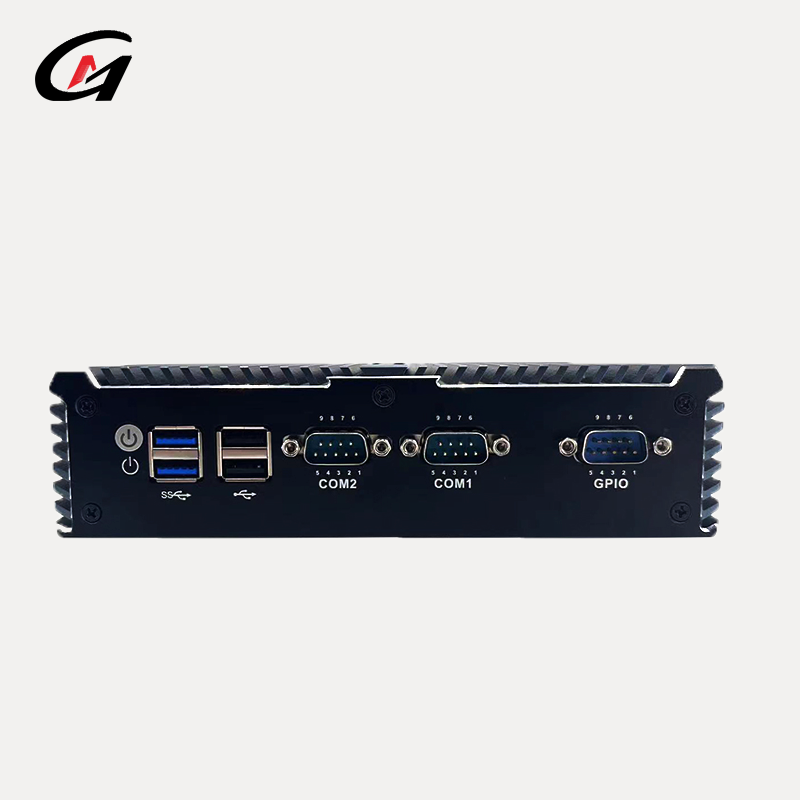

Front I/O Ports 1 × Power button
4 × USB2.0
2 × COM (RS232)

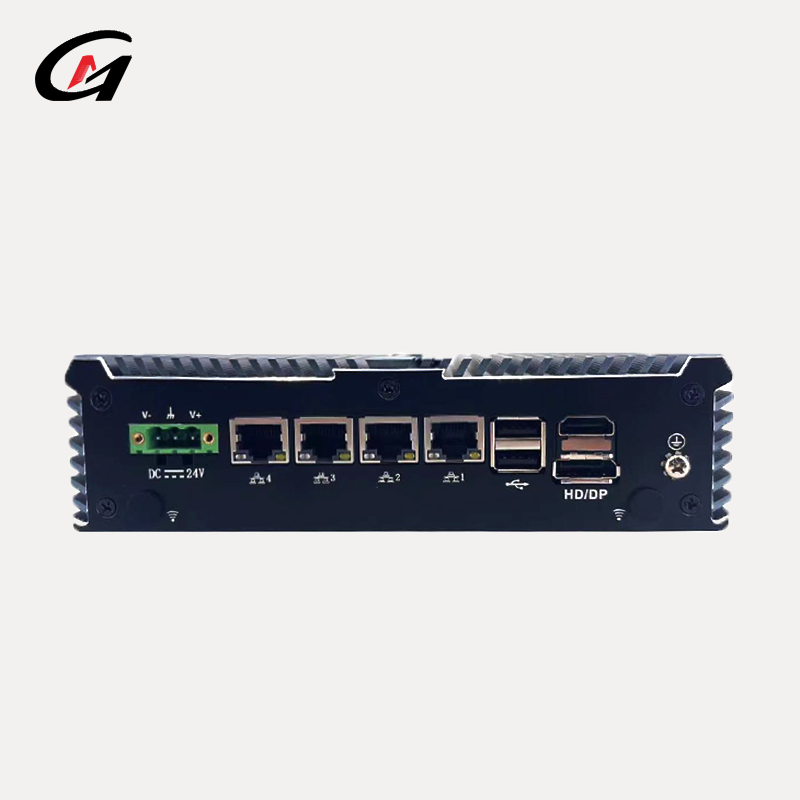

Rear I/O Ports 4 × Intel 2.5G LAN
2 × USB3.0
1 × HDMI
1 × DP
1 × DC-IN
1 × 3-pin Phoenix terminal (9V–36V)
Expansion Interfaces 1 × Mini PCIe (supports WiFi/3G/4G modules)
1 × GPIO (8-bit)
1 × TPM 2.0
Power Input DC 12V / DC 9–36V wide voltage input
Boot Method Power switch
Supports auto power-on by incoming signal
Cooling Design Fanless passive cooling with aluminum alloy finned chassis
OS Support Windows 10 / Windows 11 / Linux
Operating Temp. -10°C to 60°C (14°F to 140°F)
Storage Temp. -40°C to 80°C (-40°F to 176°F)
Humidity 10% – 95% @ 40°C, non-condensing
Mounting Options Embedded / Wall-Mount / Desktop
Dimensions (W×H×D) 198 × 126.5 × 50.5 mm
Weight Net ≈ 1.1kg / Gross ≈ 1.6kg
