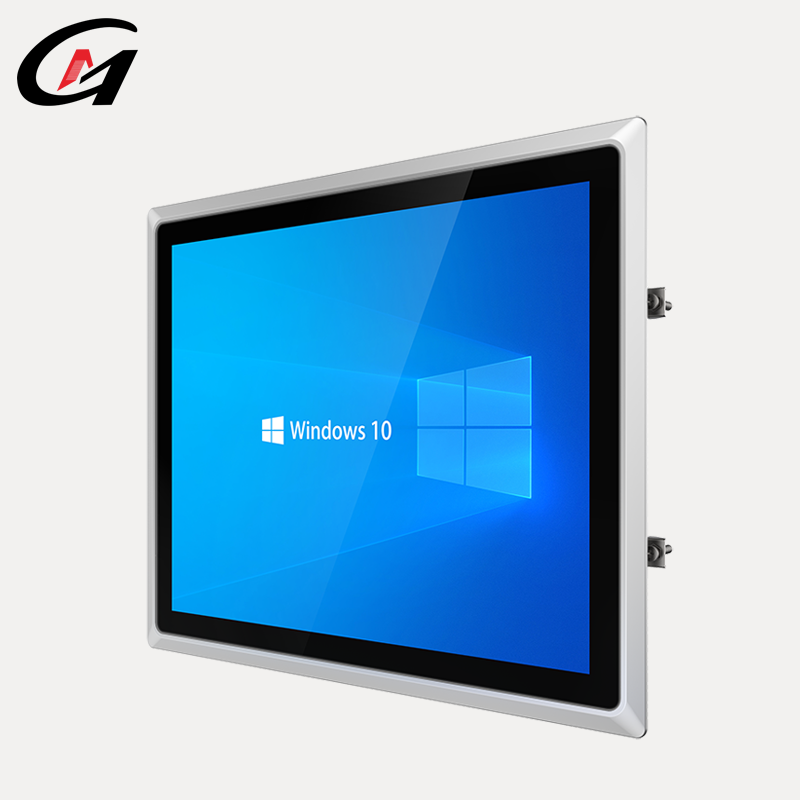

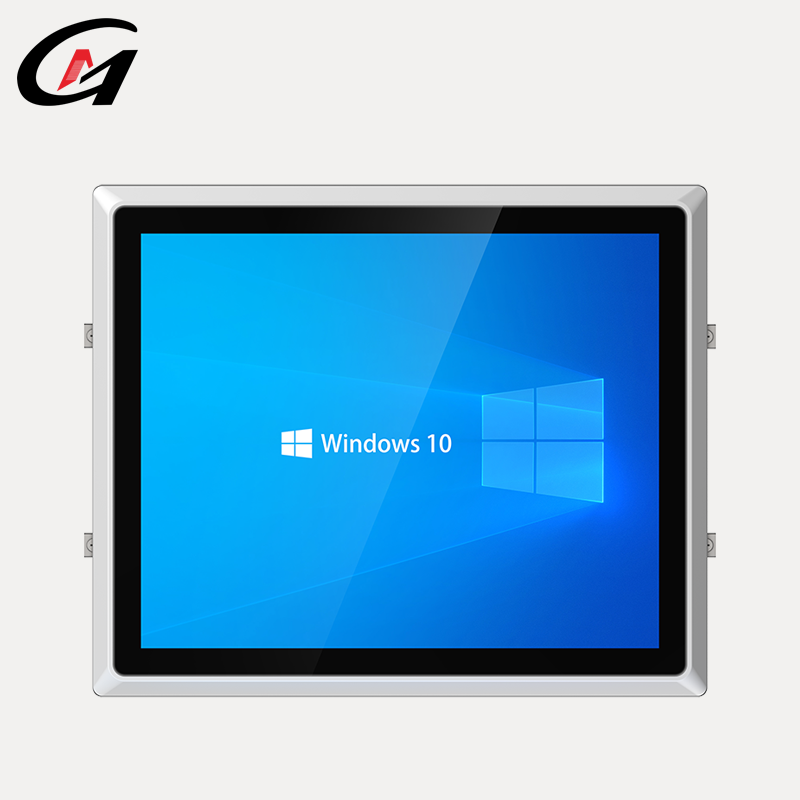

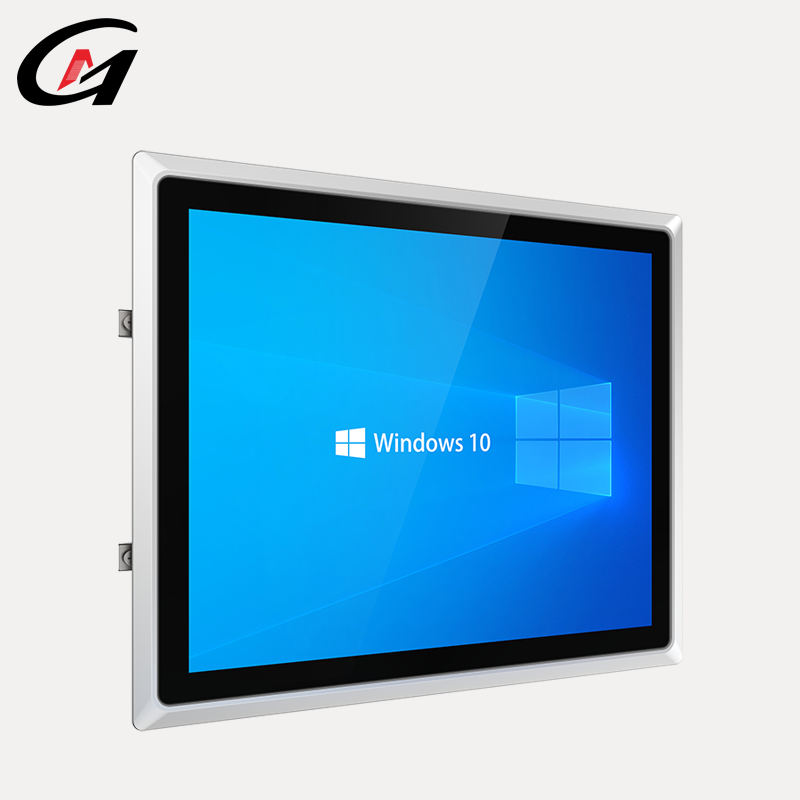

LPC-FR190-W Series – 19” Fanless Industrial Panel PC

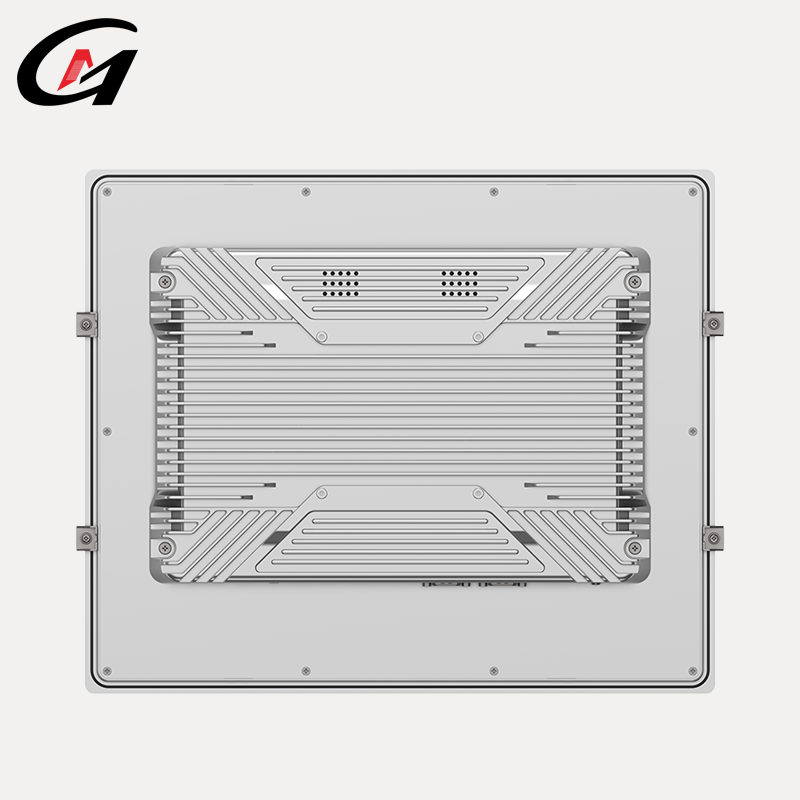

The LPC-FR190-W Series is a rugged 19-inch fanless industrial panel PC built for continuous operation in harsh industrial environments. Designed with a die-cast aluminum alloy chassis, tempered glass front panel, and fully enclosed rear cover, it delivers durability, dustproofing, and vibration resistance.

Equipped with Intel® embedded low-power processors (6th to 13th Gen, e.g. N5095, J6412, i5-7200U, i7-1335U), this system supports up to 16GB DDR4 memory and flexible storage options via M.2 NVMe SSD or 2.5” SATA drive.

The 19-inch display features 1280×1024 resolution with a 10-point capacitive touchscreen (optional resistive), providing fast, precise interaction.

Connectivity includes dual Gigabit LAN, USB 3.0, HDMI, and expandable COM ports, with optional WiFi, Bluetooth, and GPIO support. The LPC-FR190-W also supports wide-voltage power input (9V–36V), automatic power-on, and multiple installation methods (embedded, wall-mounted, desktop).

This panel PC is widely applied in:

Machine vision & CNC control

Intelligent transportation systems

Power & environmental monitoring

Smart factory terminals

Pharmaceutical equipment

Industrial automation control

Item Specification
Model LPC-FR190-W-O-XXXX (e.g., N5095, J6412, i5-6500U, i5-7200U, i7-1235U, i7-1335U)
Processor Intel® Embedded Low-Power CPU (6th / 7th / 11th / 12th / 13th Gen)
Chipset Intel® SoC
Memory 4GB / 8GB / 16GB DDR4 (depending on configuration)
Storage 1 × M.2 Key-M 2280 (NVMe PCIe x4 / SATA SSD) or 1 × 2.5” HDD/SSD
Display 19" TFT LCD, 4:3 ratio
Resolution: 1280×1024
Brightness: 350cd/m² (optional)
MTBF: 50,000 hrs
Touchscreen Capacitive G+G 10-point touch (optional resistive)

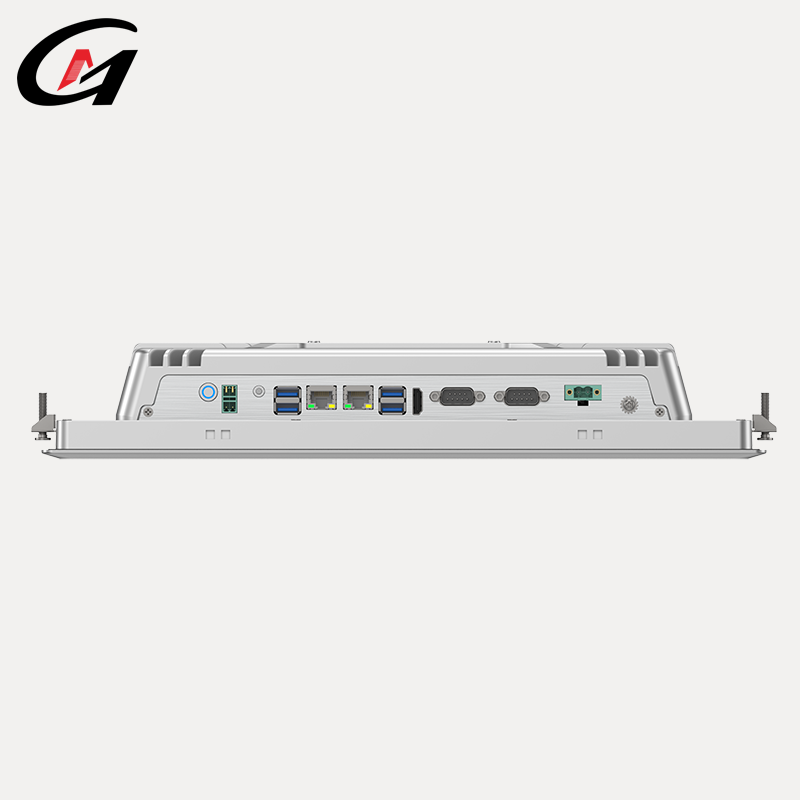

Response time <8ms Accuracy ≤2mm Graphics Intel® Integrated UHD/HD Graphics I/O Ports 2 × USB 3.0 2 × Gigabit LAN 2 × COM (expandable to 6) 1 × HDMI 1 × 2-in-1 Audio port 1 × DC-IN (Phoenix 2-pin) 1 × Remote-SW 1 × Power switch Expansion Slots 1 × M.2 Key-E 2230 (supports WiFi + Bluetooth) Optional: 1 × GPIO (10-pin) Enclosure Full aluminum alloy die-cast body with tempered glass front Fully enclosed sealed aluminum rear cover Cooling Fanless passive cooling Mounting Options Embedded / Wall-mount / Desktop bracket Power Input DC 12V (default) or optional 9V–36V wide voltage Boot Method Power button + auto power-on support OS Support 6th/7th Gen: Windows 7 / 10 / 11 / Linux 11th/12th/13th Gen: Windows 11 / Linux Operating Temp. -10°C to 60°C (14°F to 140°F) Storage Temp. -40°C to 80°C (-40°F to 176°F) Humidity 10% – 95% @ 40°C, non-condensing Cutout Size 426mm × 350mm Thickness Approx. 66.5 mm Weight Net ≈ 5.8kg / Gross ≈ 6.8kg
