The LN-1008 is a compact, high-efficiency fanless mini PC designed for industrial automation, digital signage, and smart gateway applications. Powered by the Intel® Jasper Lake N5105 processor (or optional i5-4300U, i7-4600U , i7-6500U), it delivers smooth performance with low power consumption in a space-saving chassis.
Constructed from high-strength SECC steel, the system features a vented panel design for passive cooling, eliminating the need for a fan. It supports dual-channel DDR4 memory up to 32GB and M.2 SATA NVMe storage, providing fast data access and system responsiveness.
With rich I/O including HDMI 2.0, VGA, LAN, multiple USB ports (2.0 & 3.0), audio in/out, and DC 12V input, the LN-1008 is highly versatile. It also supports dual display output and wireless connectivity via dual-band WiFi.
Installation is flexible with support for wall-mount, VESA, or desktop deployment, and automatic power-on on signal makes it perfect for embedded or unattended environments.
Item Specification
Model LN-1008 (i3-4030U / i5-4300U / i7-4600U / i7-6500 Uoptional)
Processor Intel® Jasper Lake N5105, up to 2.90GHz
Graphics Intel® UHD Graphics (up to 800MHz)
Memory DDR4 SO-DIMM × 2, up to 32GB
Storage M.2 SATA NVMe, SATA 3.0
Display Output 1 × HDMI 2.0, 1 × VGA
Wireless 9821CE WiFi module (2.4G/5G dual-band, 802.11ac/a/b/g/n)

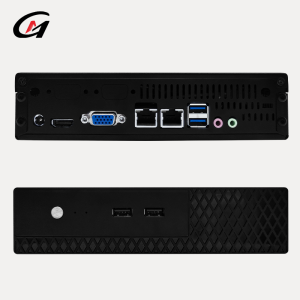

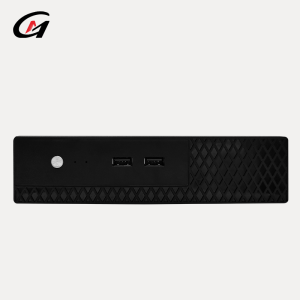

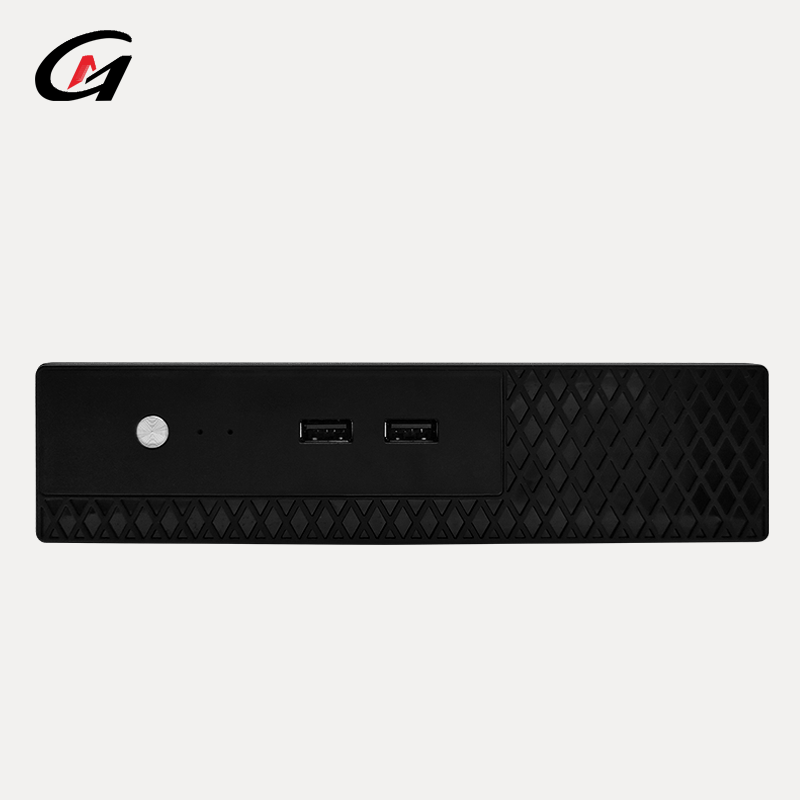

I/O Ports Front: 1 × Power button, 2 × USB 2.0

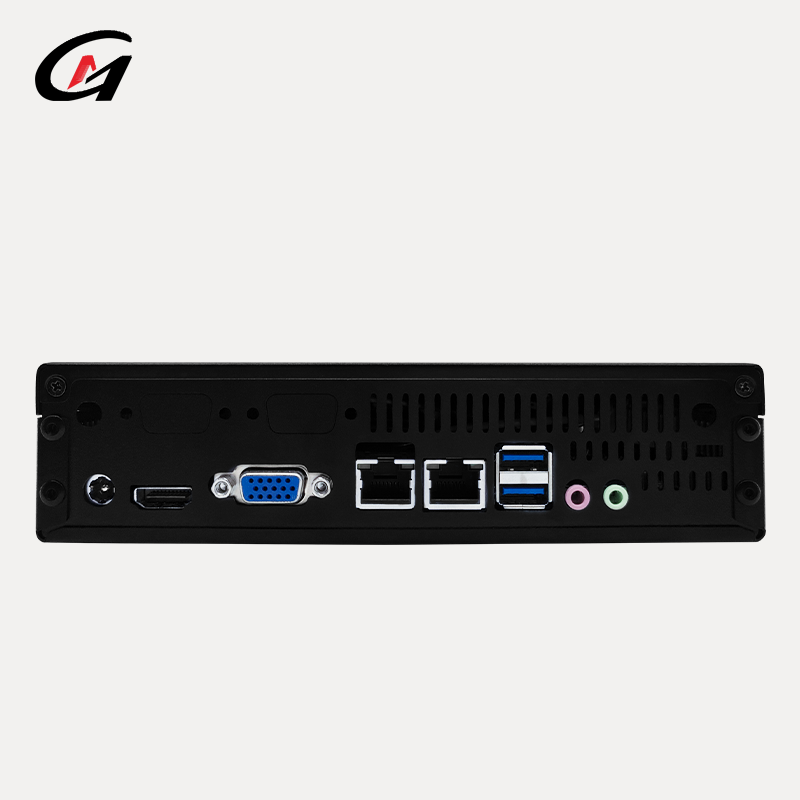

Rear: 1 × LAN, 2 × USB 3.0, 2 × USB 2.0, 1 × HDMI 2.0, 1 × VGA, 1 × MIC in, 1 × Audio out, 1 × DC in
Power Input DC 12V
Dimensions 201 × 196 × 45 mm
Weight Net: 0.8kg / Gross: 1.2kg
Operating System Windows 10 / Windows 11 / Linux
Mounting Options Wall mount / VESA mount / Desktop stand

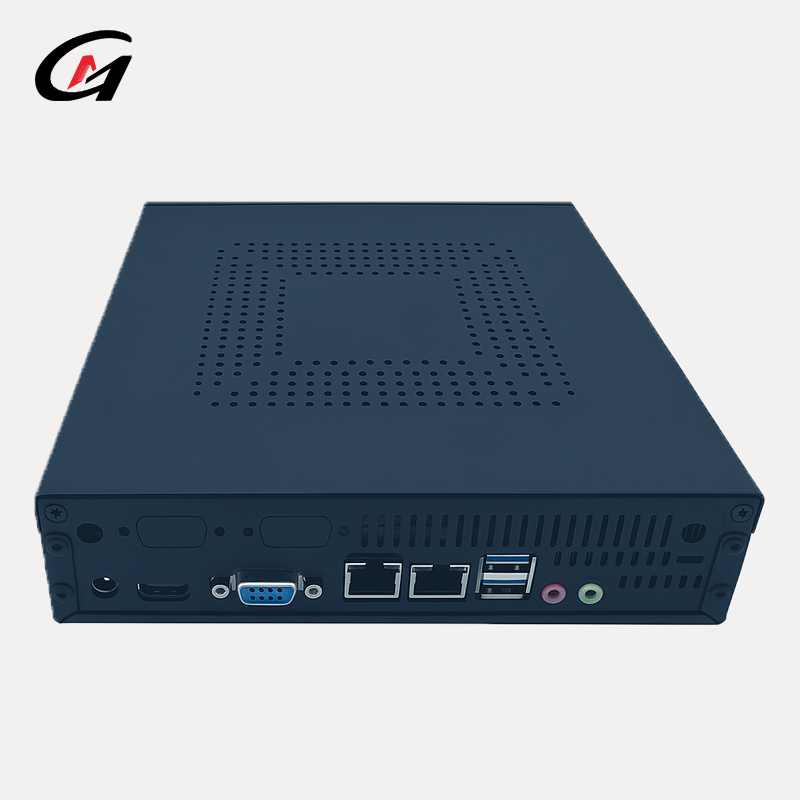

Chassis SECC steel case with panel heat dissipation design
Special Features Fanless design, ultra-compact chassis, auto power-on support
