The LN-2840 is a compact, fully enclosed fanless industrial box PC powered by the Intel® Bay Trail N2840 dual-core processor. Engineered for harsh environments, it features a high-strength extruded aluminum alloy chassis with integrated heat-dissipation fins, providing passive cooling, dustproofing, and vibration resistance.
The system supports up to 8GB DDR3L memory and dual storage with both mSATA and SATA 3.0 slots. It includes rich I/O options such as HDMI, VGA, dual LAN, multiple USB, COM ports, and audio, making it well-suited for embedded control, smart gateways, industrial IoT nodes, and edge applications.
With DC 12V input, auto power-on, and flexible installation (desktop, wall, embedded), the LN-2840 delivers reliability and efficiency for industrial automation, signage, and embedded systems.
Item Specification
Model LN-2840
Processor Intel® Bay Trail N2840 2.0GHz Dual-Core
Chipset Intel®
Memory 1 × DDR3L 1333MHz SO-DIMM, up to 8GB
Storage 1 × mSATA
1 × SATA3.0 (2.5" SSD/HDD)
Display Output 1 × HDMI 2.0
1 × VGA

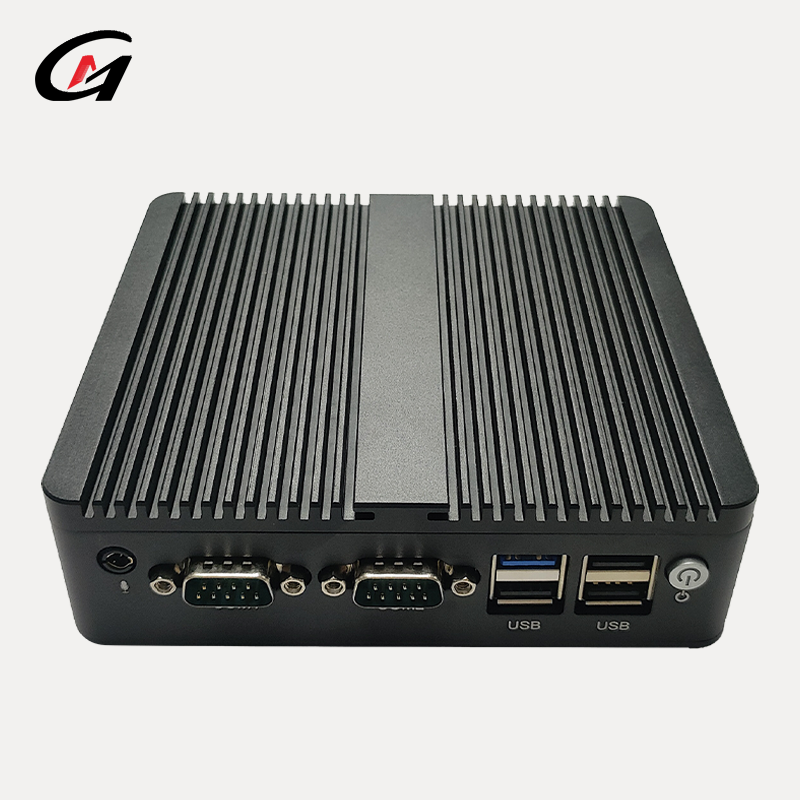

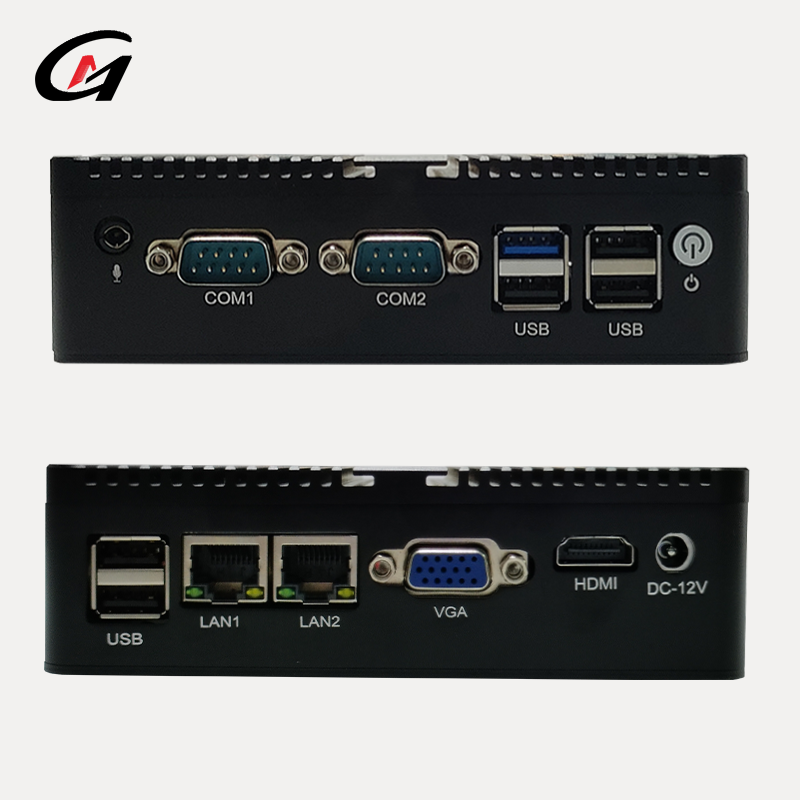

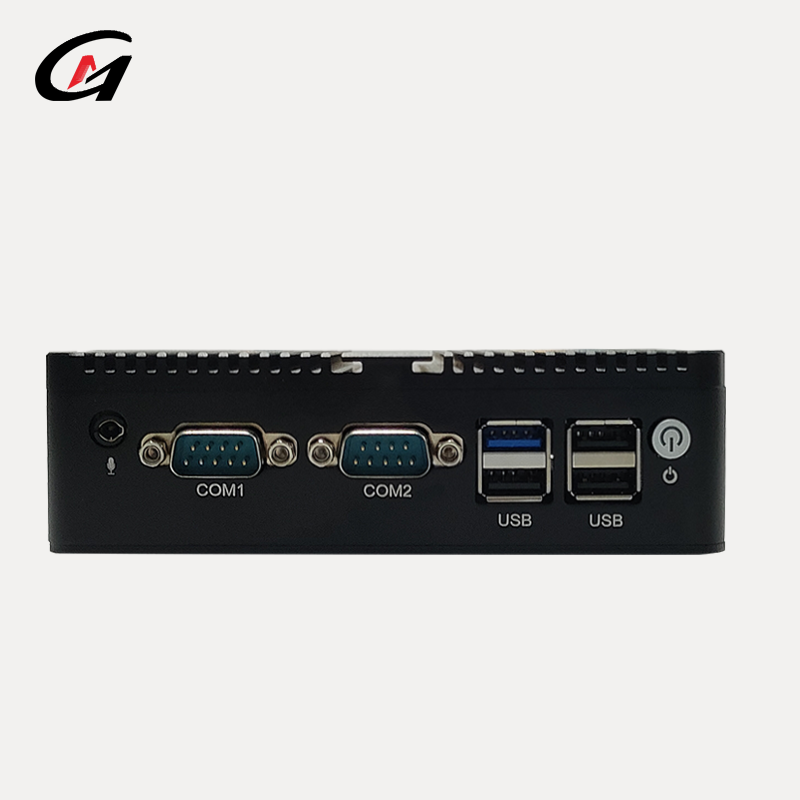

Front I/O Ports 1 × Power button
4 × USB
2 × COM
1 × Audio

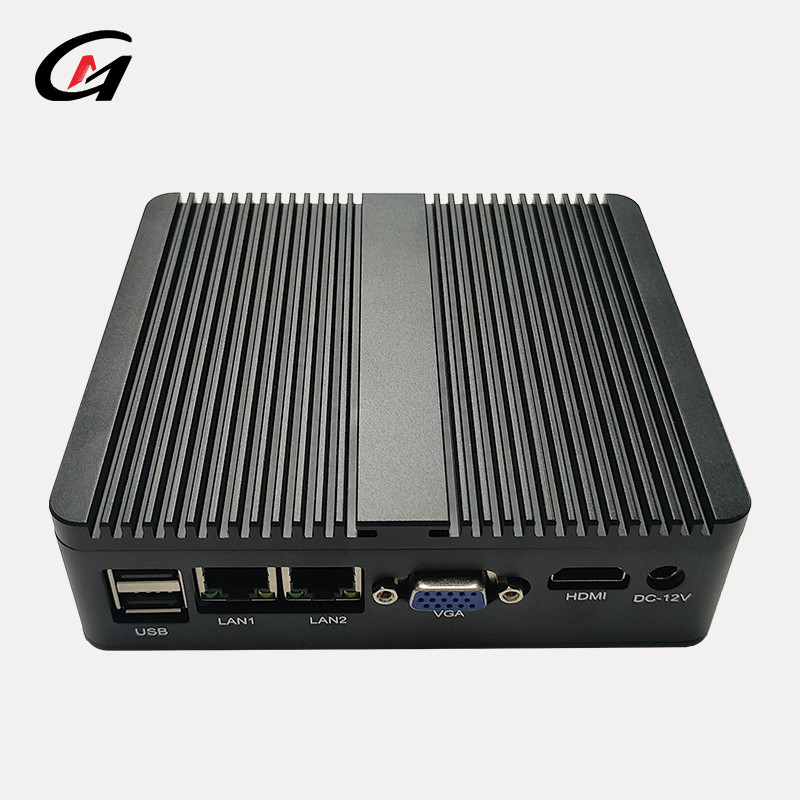

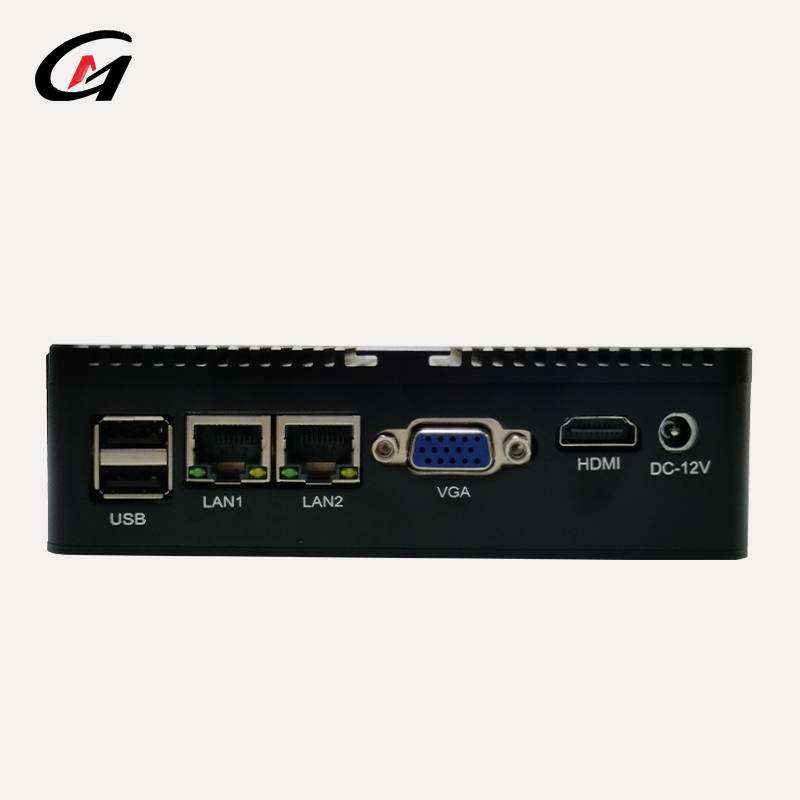

Rear I/O Ports 2 × Gigabit LAN (RLT811H)
2 × USB
1 × HDMI
1 × VGA
1 × DC-IN
Expansion 1 × Mini PCIe (supports WiFi/3G/4G modules)
2 × USB (internal)
1 × eDP
Cooling Design Fanless passive cooling, aluminum alloy heat sink chassis
Power Input DC 12V
Boot Method Power switch
Supports auto power-on by signal
OS Support Windows 10 / Windows 11 / Linux
Operating Temp. -10°C to 60°C (14°F to 140°F)
Storage Temp. -40°C to 80°C (-40°F to 176°F)
Humidity 10% – 95% @ 40°C, non-condensing
Mounting Options Embedded / Wall-mount / Desktop
Dimensions 136 × 125 × 40 mm
Weight Net ≈ 0.6kg / Gross ≈ 1.0kg
