The LN-1006 is a rugged, fanless industrial box PC designed for edge computing, industrial automation, and secure embedded deployments. Powered by the Intel® Celeron J6412 quad-core processor and supporting up to 32GB of DDR4 memory, it delivers stable performance for demanding applications.
Built with an extruded aluminum chassis and finned shell, the LN-1006 features excellent passive heat dissipation and operates silently in harsh environments involving dust, vibration, and electromagnetic interference.
With dual Gigabit LAN, six COM ports, dual display output (HDMI + VGA), and flexible expansion via Mini PCIe (WiFi/3G/4G), GPIO, and TPM 2.0, it adapts well to factory automation, equipment integration, and smart gateway scenarios.
Wide voltage input (9–36V), automatic power-on support, and wall/desktop/embedded mounting options make it ideal for 24/7 industrial deployment.
Item Specification
Model LN-1006
Processor (CPU) Intel® Celeron J6412 2.0GHz Quad-Core (compatible with Elkhart Lake full range CPUs)
Chipset Intel®
Memory 1 × DDR4 3200MHz SO-DIMM, up to 32GB
Storage 1 × M.2 Key-M 2280 (SATA protocol)
1 × 2.5" SATA3.0 SSD/HDD
Display Output 1 × HDMI 2.0
1 × VGA

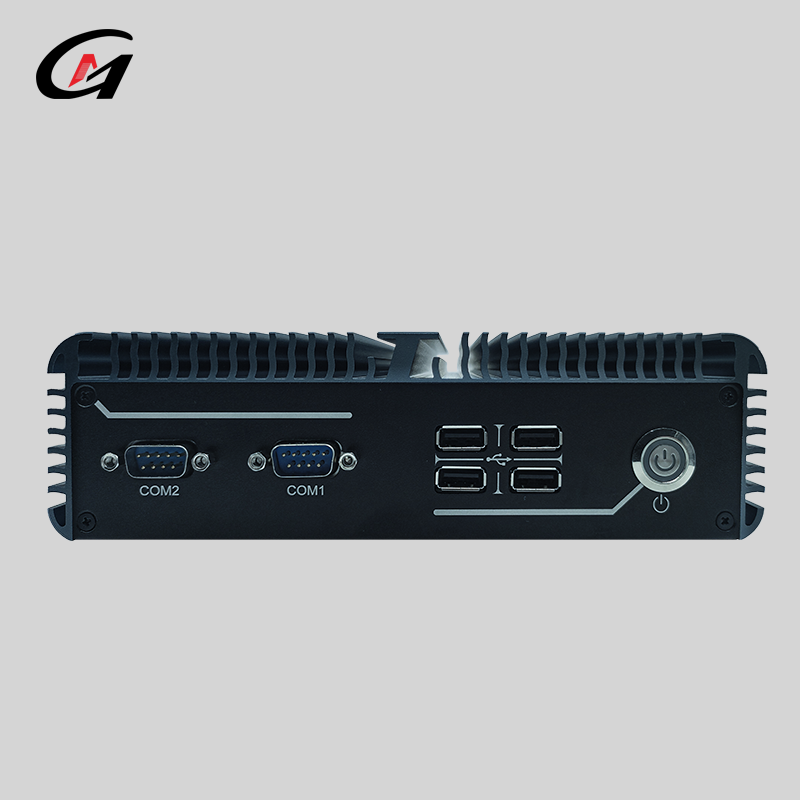

Front I/O Ports 1 × Power switch
4 × USB2.0
2 × COM (RS232)

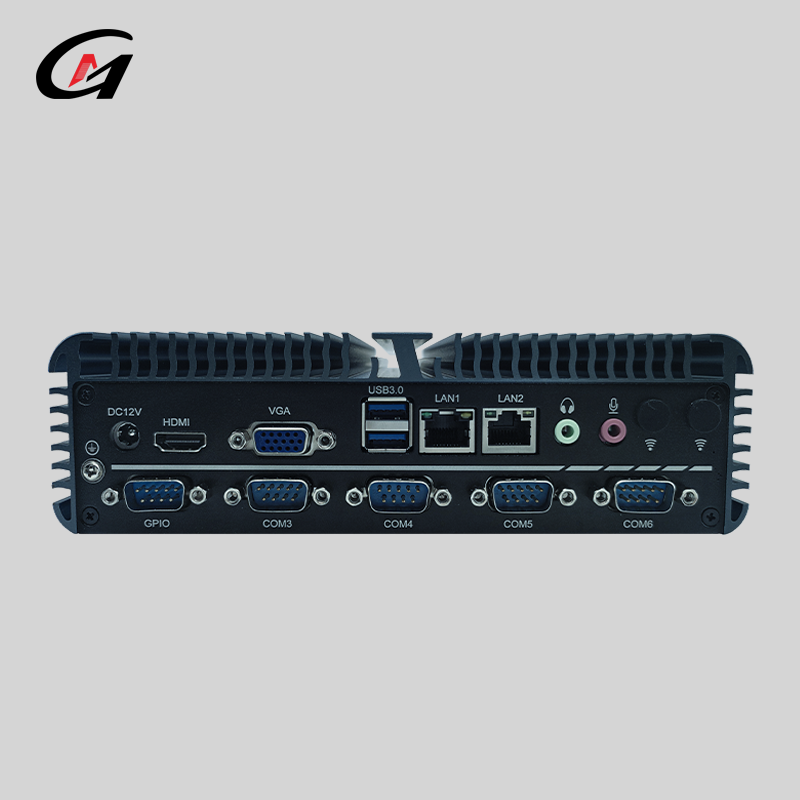

Rear I/O Ports 2 × LAN (Gigabit)
2 × USB3.0
1 × HDMI
1 × VGA
4 × COM
1 × Audio
1 × DC-IN
Expansion Interfaces 1 × Mini PCIe (supports WiFi/3G/4G modules)
1 × 8-bit GPIO
1 × TPM 2.0
Power Input DC 12V / DC 9–36V wide voltage input
Boot Method Power switch + Auto power-on by incoming signal
Cooling Design Fanless passive cooling with extruded aluminum alloy fin shell
Operating System Windows 10 / Windows 11 / Linux
Operating Temperature -10°C to 60°C (14°F to 140°F)
Storage Temperature -40°C to 80°C (-40°F to 176°F)
Humidity 10% – 95% @ 40°C, non-condensing
Mounting Options Embedded / Wall-mount / Desktop
Dimensions 210 × 209 × 58.5 mm
Weight Net: approx. 1.9 kg / Gross: approx. 2.6 kg
