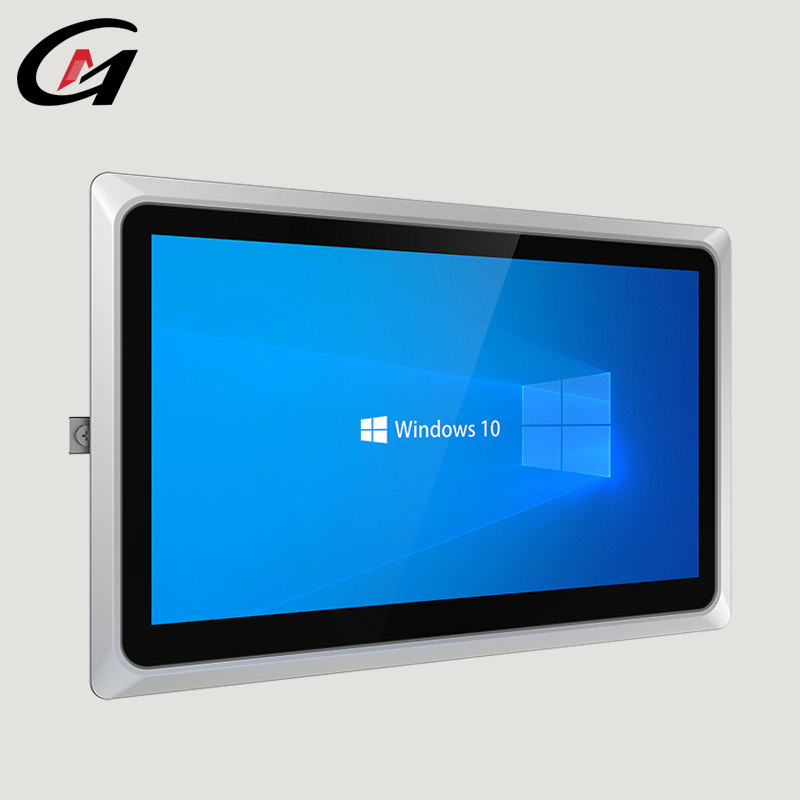

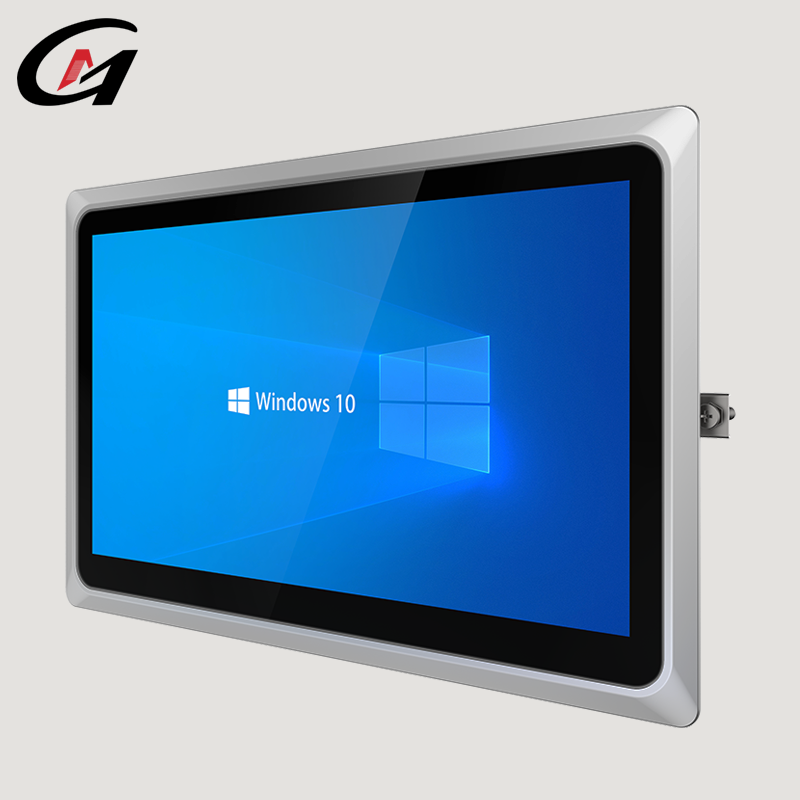

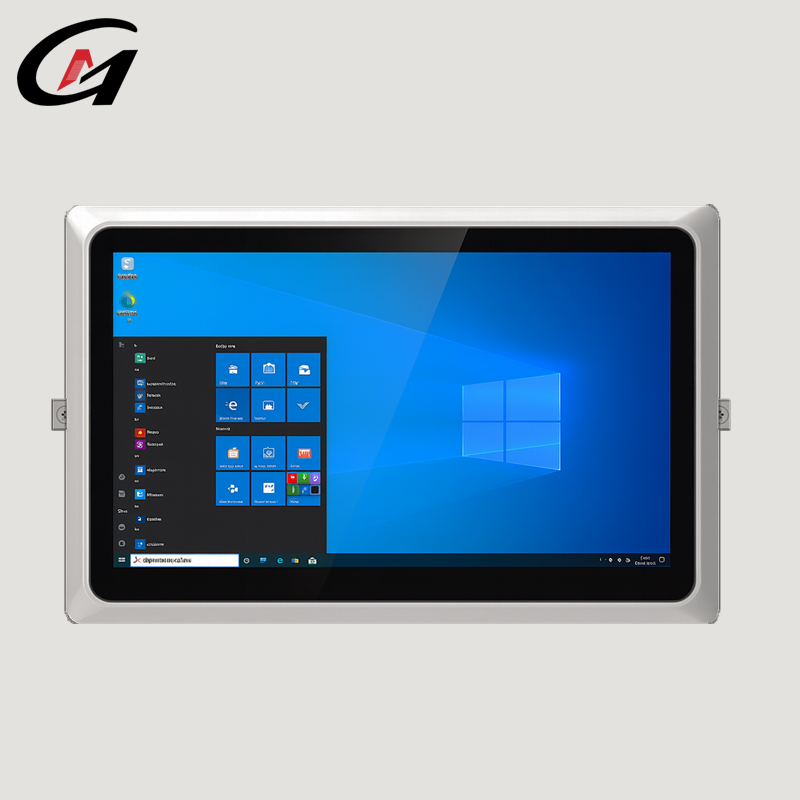

LPC-KR156-W Series – 15.6” Fanless Industrial Touch Panel PC

The LPC-KR156-W Series is a rugged 15.6-inch fanless industrial panel PC designed for demanding automation and embedded applications. Built with a die-cast aluminum alloy chassis and tempered glass front panel, it ensures excellent durability, dustproofing, and vibration resistance, making it suitable for continuous 24/7 operation in harsh environments.

Equipped with Intel® embedded low-power processors (6th to 13th Gen, e.g. N5095, J6412, i5-7200U, i7-1335U), this system supports up to 16GB DDR4 RAM and M.2 NVMe or 2.5” SATA storage. The 15.6-inch widescreen display delivers 1920×1080 Full HD resolution, with 10-point capacitive touchscreen (optional resistive), providing fast and accurate response for industrial control tasks.

It offers a wide range of connectivity options including dual Gigabit LAN, USB 3.0, HDMI, expandable COM ports, and optional WiFi, Bluetooth, and GPIO. The system also supports 9–36V wide voltage input and automatic power-on, enhancing adaptability in industrial deployments.

With multiple installation options (embedded, wall-mount, or desktop), the LPC-KR156-W is widely applied in:

Machine vision & CNC control

Smart factory & automation terminals

Intelligent transportation systems

Environmental and power monitoring

Pharmaceutical and medical equipment

Item Specification
Model LPC-KR156-W-O-XXXX (e.g., N5095, J6412, i5-6500U, i5-7200U, i7-1235U, i7-1335U)
Processor Intel® Embedded Low-Power CPUs (6th / 7th / 11th / 12th / 13th Gen)
Chipset Intel® SoC
Memory 4GB / 8GB / 16GB DDR4
Storage 1 × M.2 M-Key 2280 (NVMe PCIe x4 / SATA SSD) or 1 × 2.5” HDD/SSD
Display 15.6” widescreen TFT LCD, resolution: 1920×1080, brightness: 300 cd/m² (optional), MTBF: 50,000 hrs
Touchscreen Capacitive G+G 10-point touch (optional resistive)

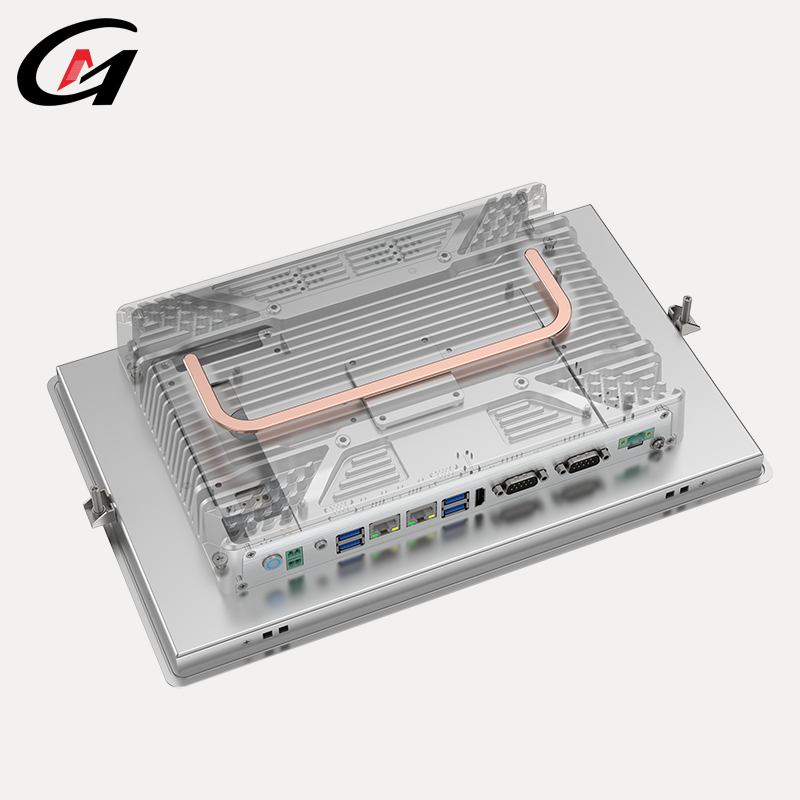

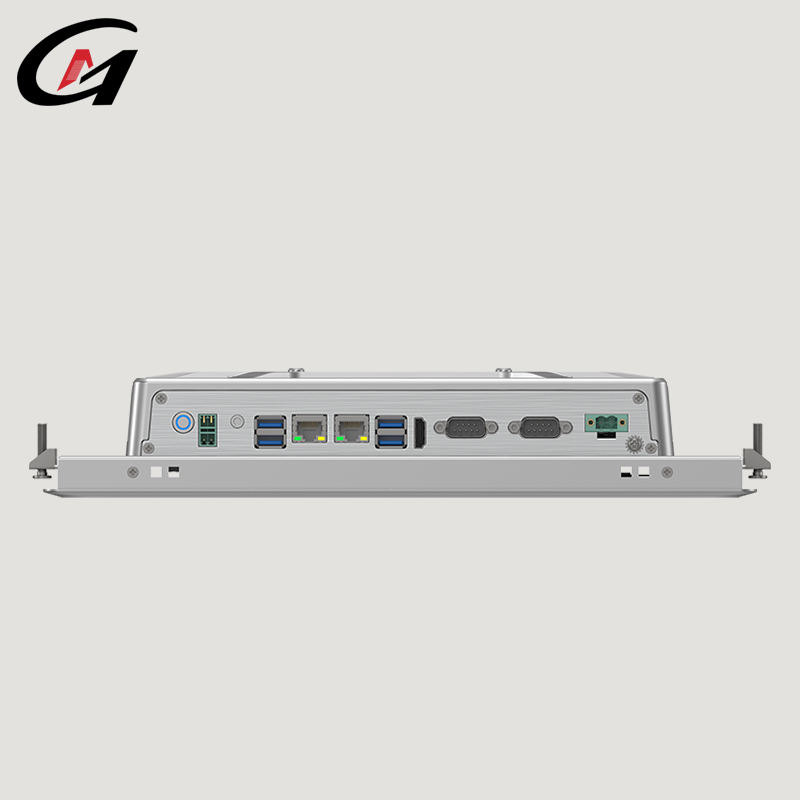

Response time <8ms, touch accuracy ≤2mm Graphics Intel® Integrated UHD/HD Graphics I/O Ports 2 × USB 3.0 2 × Gigabit LAN 2 × COM (expandable to 6) 1 × HDMI 1 × 2-in-1 audio port 1 × DC-IN (Phoenix connector) 1 × Remote switch Expansion Slots 1 × M.2 Key-E 2230 (WiFi + Bluetooth module support) Optional: 1 × GPIO (10-pin) Enclosure All-aluminum die-cast with tempered glass front Fully enclosed aluminum rear cover Cooling Fanless passive cooling Mounting Options Embedded panel / Wall-mount / Desktop bracket Power Input DC 12V (default), optional 9–36V wide-voltage input Boot Method Power button + automatic power-on supported OS Support 6th/7th Gen: Windows 7 / 10 / 11 / Linux 11th/12th/13th Gen: Windows 11 / Linux Operating Temp. -10°C to 60°C (14°F to 140°F) Storage Temp. -40°C to 80°C (-40°F to 176°F) Humidity 10% – 95% @ 40°C, non-condensing Cutout Size 398mm × 242mm Thickness Approx. 56.5 mm Weight Net ≈ 4.5kg / Gross ≈ 5.0kg
