The LN-1003F is a high-performance industrial Box PC equipped with active cooling, built for demanding network applications such as firewall, SD-WAN, and industrial edge computing. Powered by Intel® 11th Gen Tiger Lake-U processors (i5/i7 options), it delivers robust multi-core performance with low power consumption.

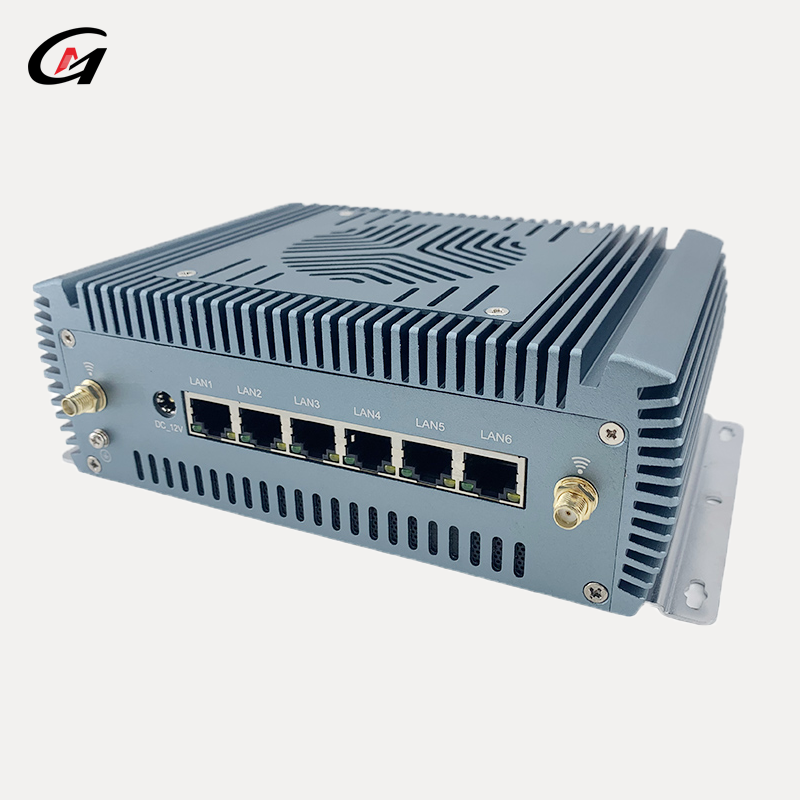

This system features six Intel 2.5G LAN ports, ideal for high-speed network routing, secure gateways, and industrial data exchange. Its sturdy aluminum alloy casing integrates both internal fan and finned heat dissipation, providing excellent durability in harsh environments involving dust, vibration, and electromagnetic interference.
The LN-1003F supports up to 64GB DDR4 memory and offers dual storage: M.2 NVMe PCIe 3.0 x4 or SATA, and a 2.5-inch drive bay. Expandability includes Mini PCIe for WiFi/3G/4G modules and an 8-bit GPIO interface.
With multiple mounting options (desktop, wall-mount, embedded), wide voltage input (12–19V), and automatic power-on via signal, this system is designed for 24/7 reliability in industrial, security, and smart city scenarios.
Model：LN-1003F BOX Fan Series
Processor：Onboard Intel® 11th Gen Tiger Lake-U (i5-1135G7 / i7-1165G7)
Chipset：Intel®
Memory：2× DDR4 SO-DIMM slots (3200MHz), up to 64GB
Storage：1× M.2 Key-M 2280 (NVMe PCIe 3.0 x4 / SATA3.0) + 1× 2.5" SATA3.0 bay
Display Output：1× HDMI 2.0 (4096×2160 @60Hz, supports 4K)

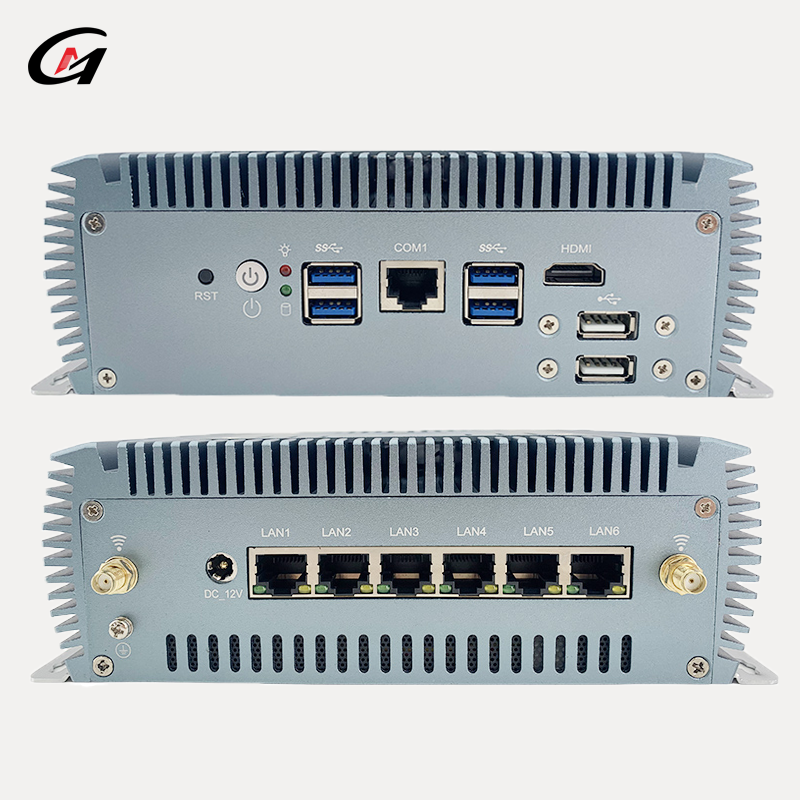

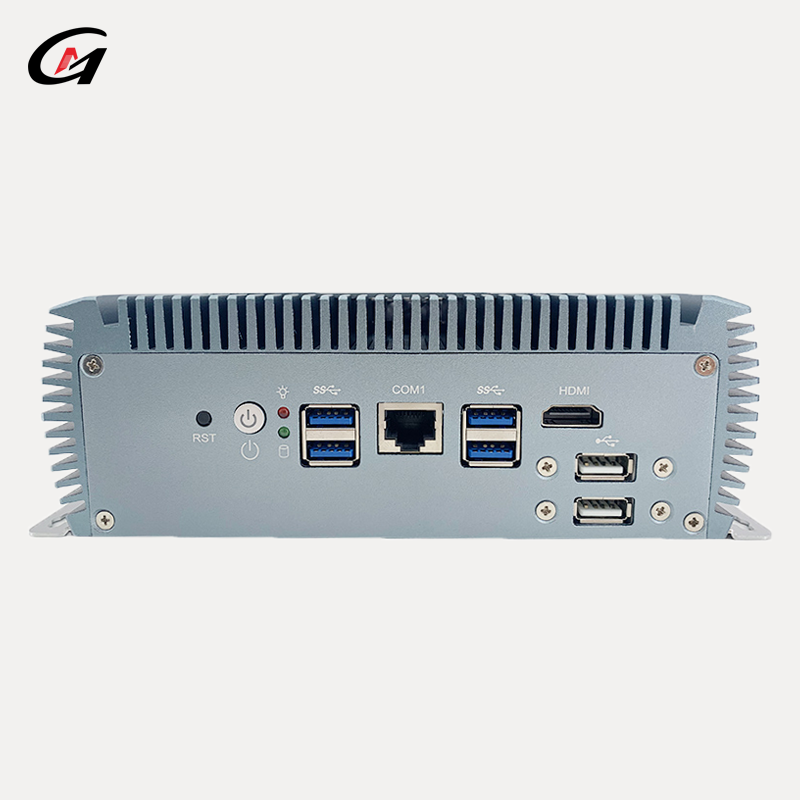

Front I/O：1× Power switch, 1× Reset, 4× USB 3.0, 2× USB 2.0, 1× COM (RJ45), 1× HDMI

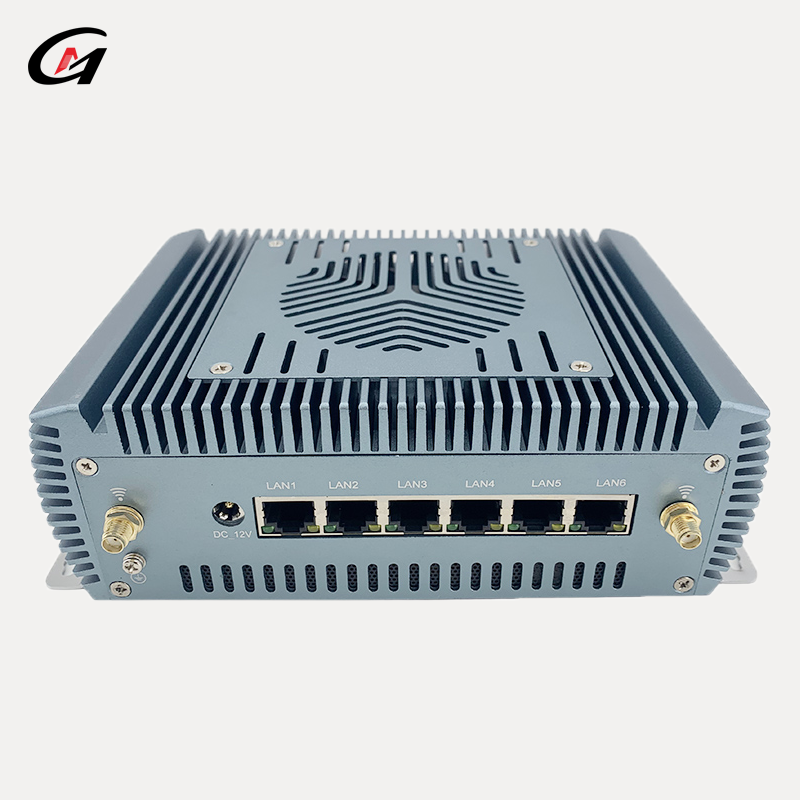

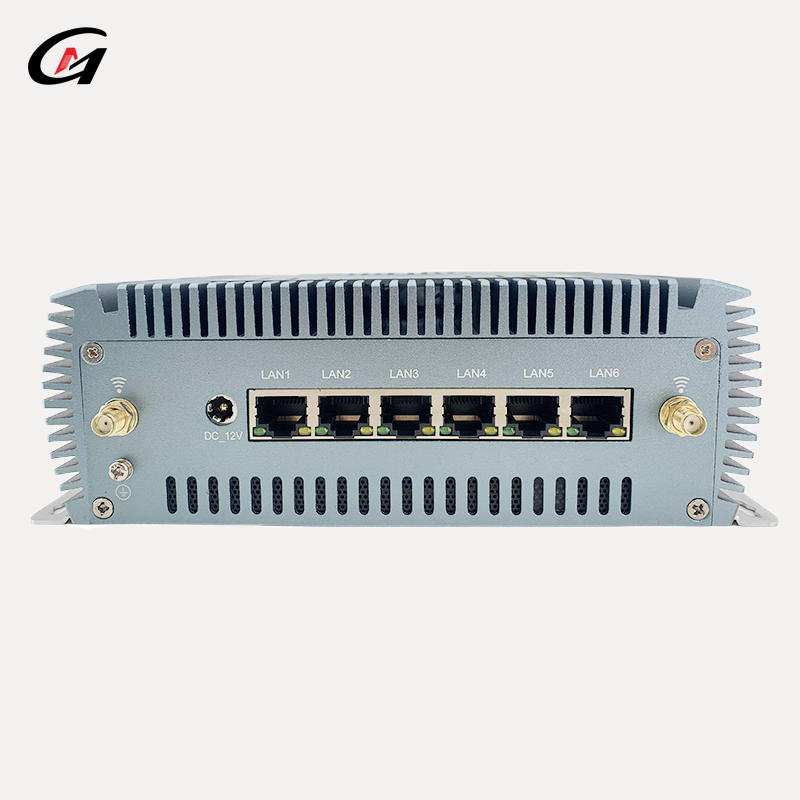

Rear I/O：6× 2.5G LAN (Intel), 1× DC power input
Expansion Slots：1× Mini PCIe (supports PCIe + USB2.0, WiFi/3G/4G modules), 1× GPIO (8-bit)
Power Input：DC 12V–19V (90W adapter)
Cooling System：Active fan cooling (with internal fan + fin shell)
Operating Temp.：-10°C ~ 60°C
Storage Temp.：-40°C ~ 80°C
Humidity：10%–95% @40°C (non-condensing)
Mounting：Embedded / Wall-mount / Desktop
Dimensions：182 × 125 × 62.5 mm
Weight：Net ≈ 1.5kg / Gross ≈ 2.0kg
OS Support：Windows 10 / Windows 11 / Linux
Special Features：Auto power-on on signal, aluminum housing, anti-dust, anti-vibration, rich I/O, 6x 2.5G LAN ports
