The LN-1007 is a slim, fanless mini PC designed for industrial, home office, and commercial IoT scenarios. Powered by the Intel® Jasper Lake N5105 quad-core processor, it delivers efficient performance with ultra-low power consumption, and is compatible with other CPUs like N100, N5095, and J6412 depending on your configuration.
Built with a SECC high-strength chassis and panel ventilation hole design, the LN-1007 ensures effective heat dissipation without a fan, making it ideal for quiet environments or 24/7 embedded applications.
The system supports up to 32GB DDR4 RAM, dual storage (M.2 + 2.5" SATA), and includes rich I/O interfaces: HDMI + VGA, 5 × USB ports, LAN, audio, and more. Expansion is possible via Mini PCIe for WiFi/3G/4G modules.
It also features DC 12V input, automatic power-on, and multiple mounting options including wall mount, desktop stand, and VESA mount, making it a compact and adaptable solution for HTPC, digital signage, smart terminals, and industrial control environments.
Item Specification
Model LN-1007
Processor Intel® Jasper Lake N5105 2.0GHz Quad-Core (optional: N100, N5095, J6412)
Chipset Intel®
Memory 1 × DDR4 3200MHz SO-DIMM, up to 32GB
Storage Support 1 × M.2 Key-M 2280 (SATA)
1 × 2.5" SATA3.0 SSD/HDD
Display Output 1 × HDMI 2.0
1 × VGA

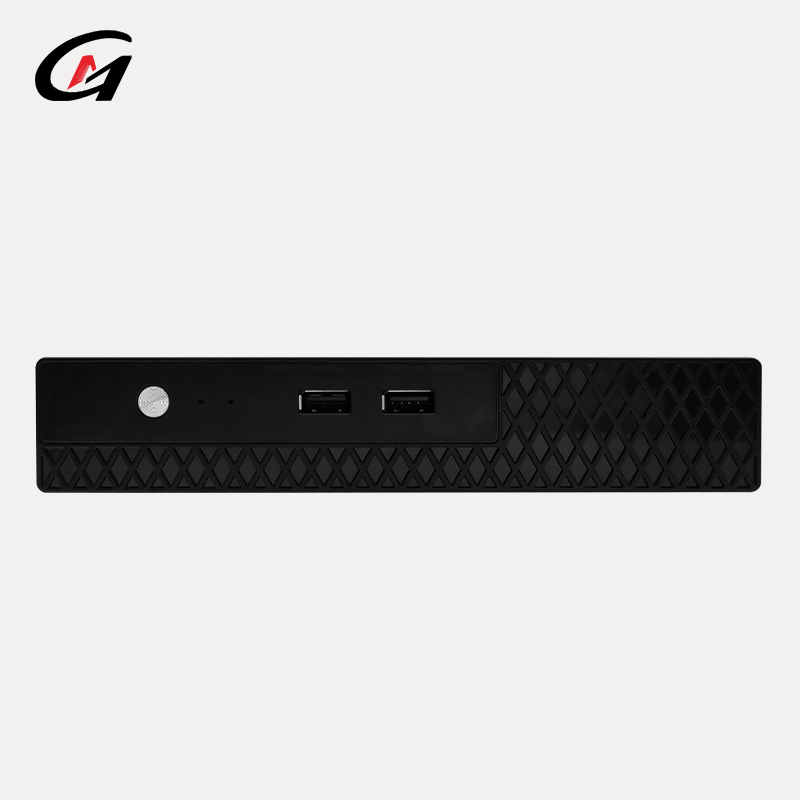

Front I/O Ports 1 × Power button
2 × USB

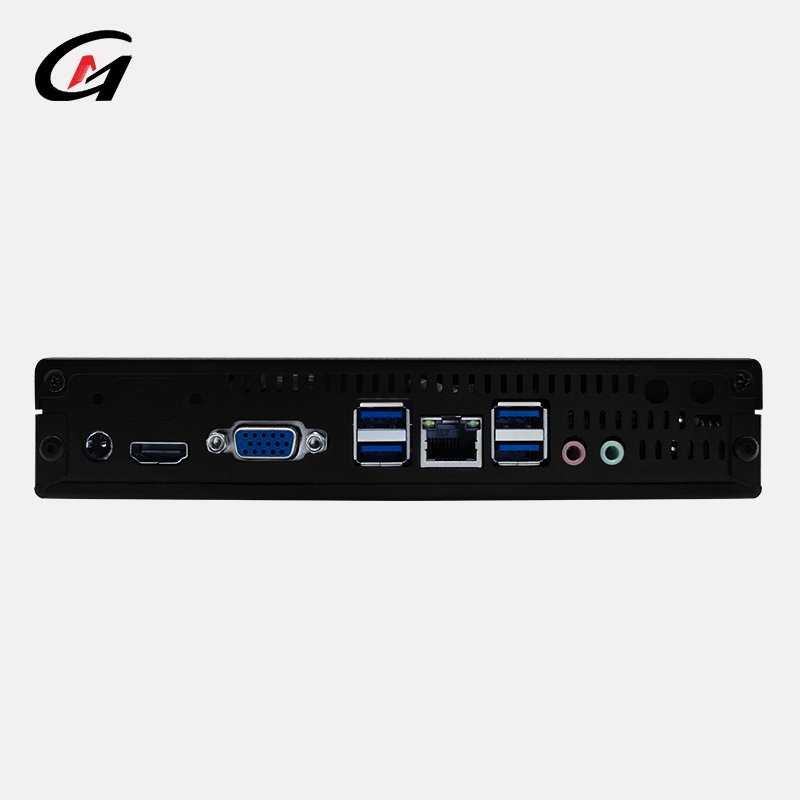

Rear I/O Ports 1 × LAN
2 × USB 3.0
2 × USB 2.0
1 × HDMI
1 × VGA
1 × DC-IN
1 × MIC
1 × Audio Out
Expansion Interfaces 1 × Mini PCIe slot (supports WiFi/3G/4G modules)
Power Input DC 12V
Cooling Design Fanless, panel ventilation hole design
Chassis Material SECC high-strength steel plate with advanced coating
Operating System Windows 10 / Windows 11 / Linux
Boot Method Power switch + Auto power-on by signal
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 10% – 95% @ 40°C, non-condensing
Mounting Options Monitor back mount / Wall-mount / Desktop stand
Dimensions 201 × 186 × 45 mm
Weight Net ≈ 0.8kg / Gross ≈ 1.2kg
