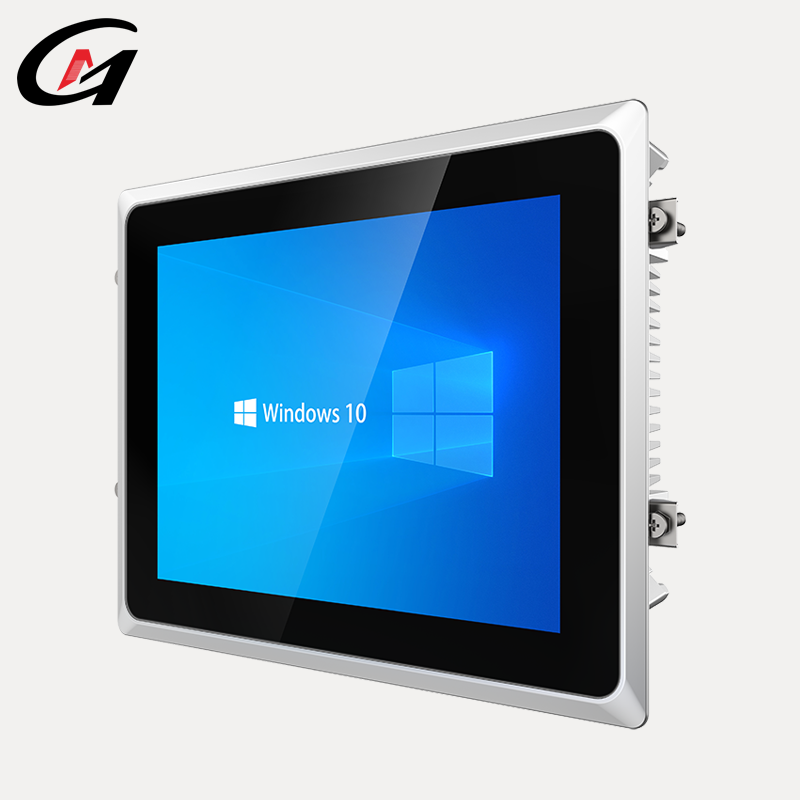

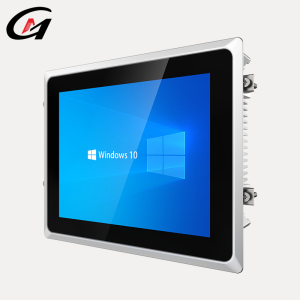

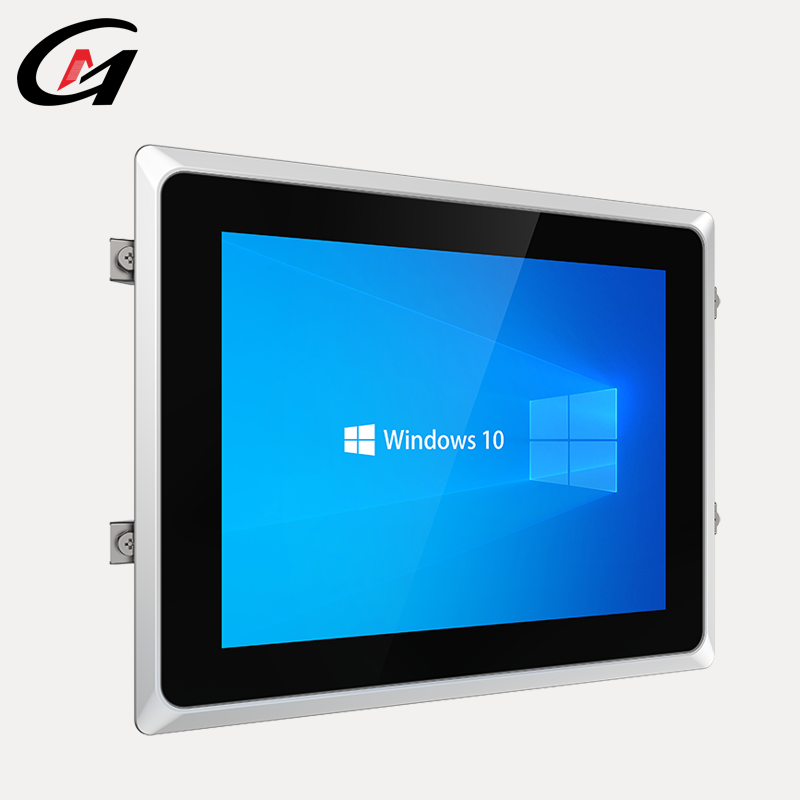

The LPC-FR104-W Series is a rugged 10.4-inch industrial panel PC designed for harsh environments and long-term embedded control systems. Featuring a fanless all-aluminum enclosure, it is built to resist dust, vibration, and heat, ensuring silent and stable operation in 24/7 industrial scenarios.
Equipped with Intel® low-power embedded processors (from 6th to 13th Gen, e.g., N5095, J6412, 6500U), this device offers excellent scalability, with up to 16GB RAM, NVMe SSD, and a 1024×768 capacitive 10-point touchscreen for precise control and responsiveness.
The LPC-FR104 supports rich I/O including dual LAN, USB 3.0, HDMI, COM ports, and offers optional GPIO, WiFi/Bluetooth modules, and wide-voltage DC input. It can be mounted via embedded panel, VESA wall-mount, or desktop bracket, making it ideal for applications like:
Machine Vision & CNC control
Industrial automation
Environmental monitoring
Smart factory & power systems
Intelligent transportation
Medical and pharmaceutical equipment
Item Specification
Model LPC-FR104-W-O-XXXX (e.g., J6412, N5095, 6500U, etc.)
Processor Intel® Embedded 6th / 7th / 11th / 12th / 13th Gen Low-Power CPU (e.g. N5095, J6412, 1235U)
Display 10.4” 4:3 industrial screen, 1024×768 resolution, 300 cd/m² (optional), MTBF 50,000 hrs
Touchscreen 10-point capacitive G+G touch (optional resistive), <8ms response, ±2mm accuracy
Memory 4GB / 8GB / 16GB DDR4 (based on configuration)
Storage 1 × M.2 M-Key 2280 (NVMe PCIe x4 / SATA SSD) or 1 × 2.5" SATA HDD/SSD

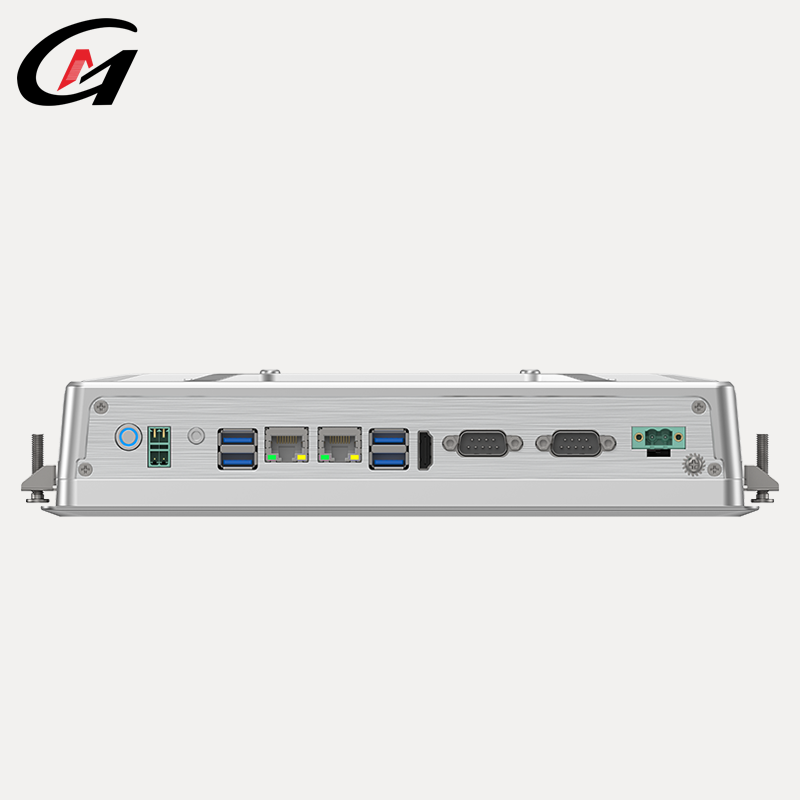

I/O Ports 2 × USB 3.0
2 × Gigabit LAN
2 × COM (expandable to 6 COM)
1 × HDMI
1 × 2-in-1 Audio
1 × Power Button
1 × Remote-SW
1 × Phoenix 2-pin Power In
Expansion Slots 1 × M.2 Key-E 2230 (WiFi + Bluetooth module support)
Optional: 1 × GPIO (10-pin)

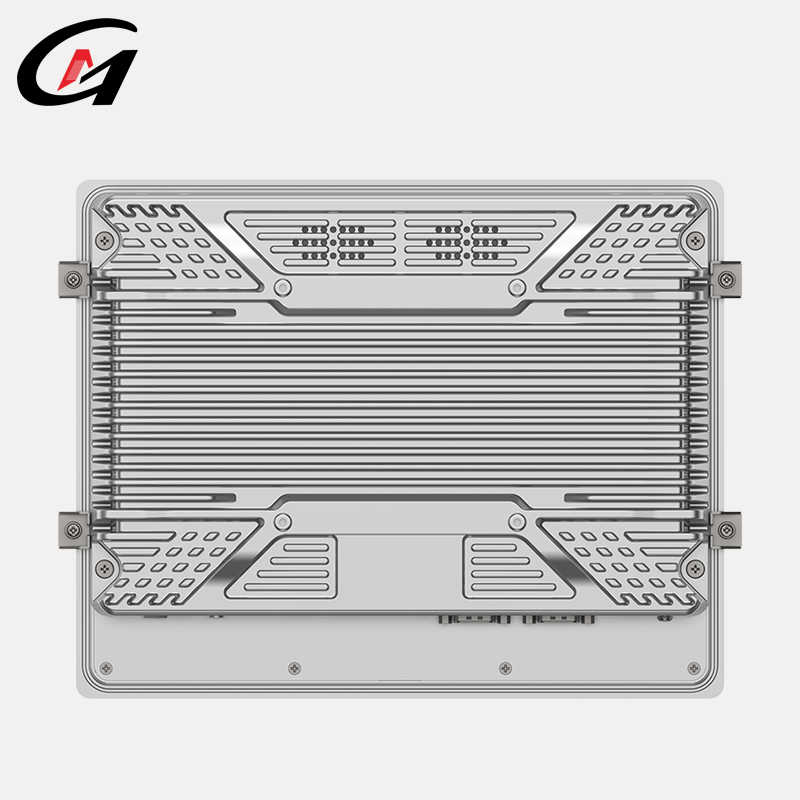

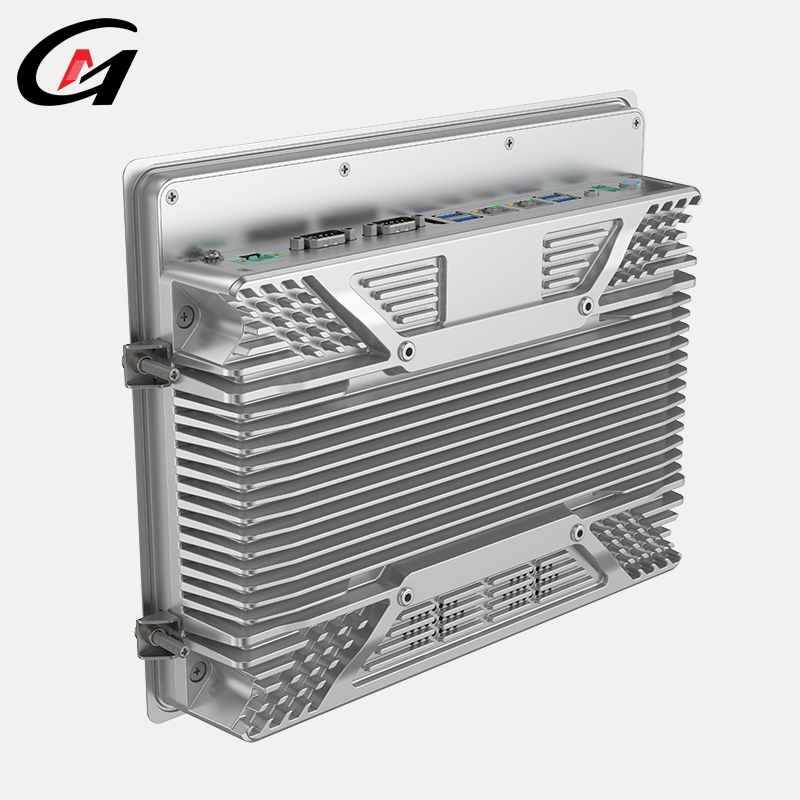

Chassis All-aluminum die-cast body with tempered glass front
Full metal enclosed back (O-type)
Cooling Fanless passive cooling
Mounting Options Embedded panel / Wall-mount / Desktop bracket
Power Input DC 12V (default) or 9–36V wide-voltage (optional)
OS Support 6/7 Gen: Windows 7 / 10 / 11 / Linux
11/12/13 Gen: Windows 11 / Linux
Operating Temp. -10°C ~ 60°C (14°F ~ 140°F)
Storage Temp. -40°C ~ 80°C (-40°F ~ 176°F)
Humidity 10% – 95% @ 40°C, non-condensing
Cutout Dimensions 266mm × 211mm (embedded installation)
Thickness Approx. 56.5mm
Weight Net: 3.5kg / Gross: 4.0kg
