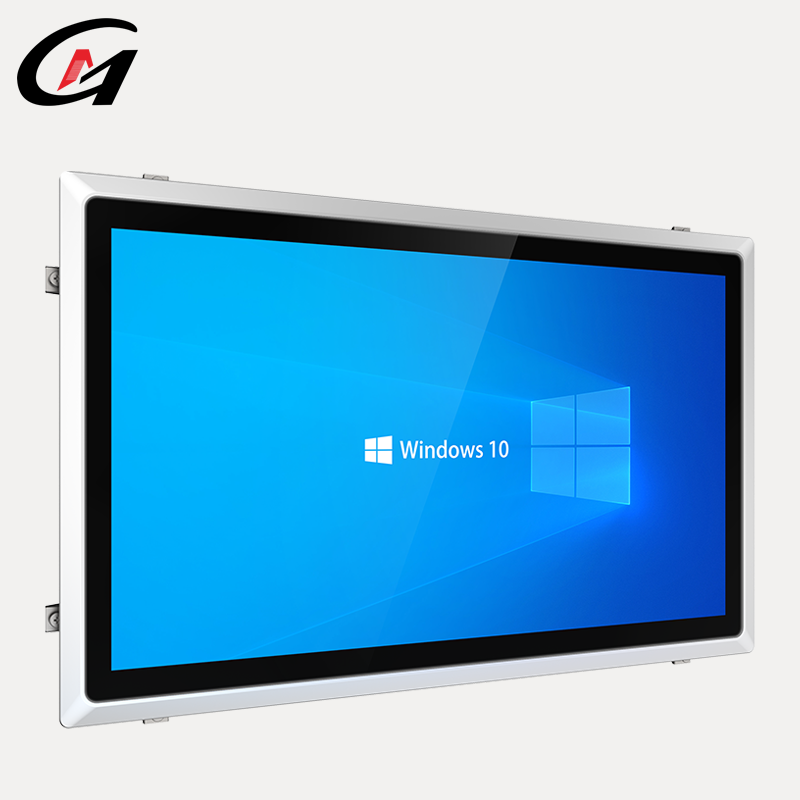

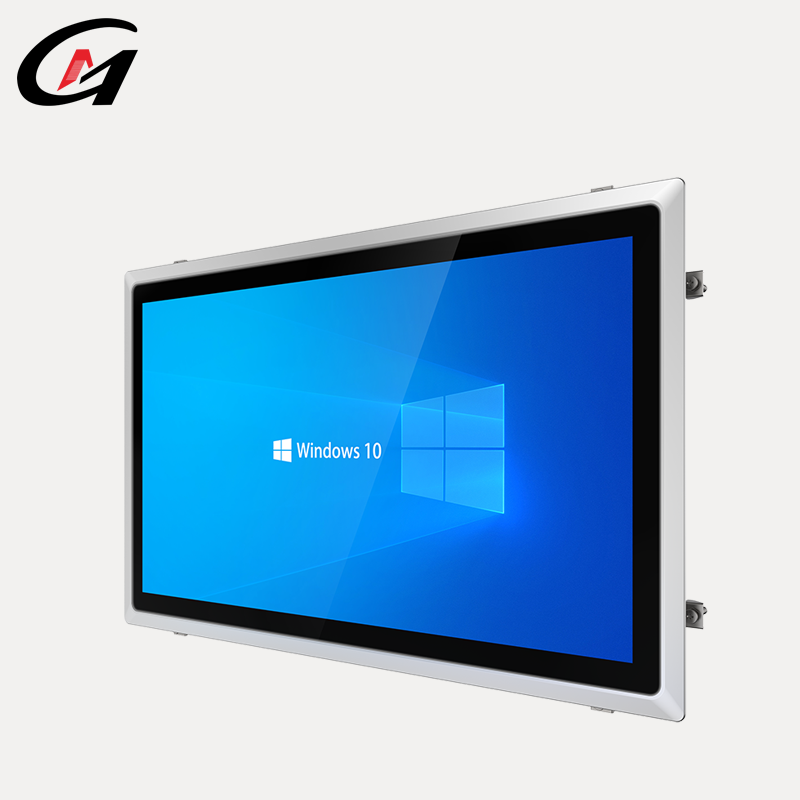

LPC-KR215-W Series – 21.5” Fanless Industrial Panel PC

Computation

Model: LPC-KR215-W-O-XXXX (N5095 / J6412 / i5-6500U / i5-7200U / i7-1235U / i7-1335U)

Processor: Intel® Embedded Low-Power CPUs (6th / 7th / 11th / 12th / 13th Gen)

Chipset: Intel® SoC

Memory: 4GB / 8GB / 16GB DDR4

Storage:
1 × M.2 Key-M 2280 (NVMe PCIe x4 / SATA SSD)
or 1 × 2.5” HDD/SSD

Graphics: Intel® Integrated UHD / HD Graphics

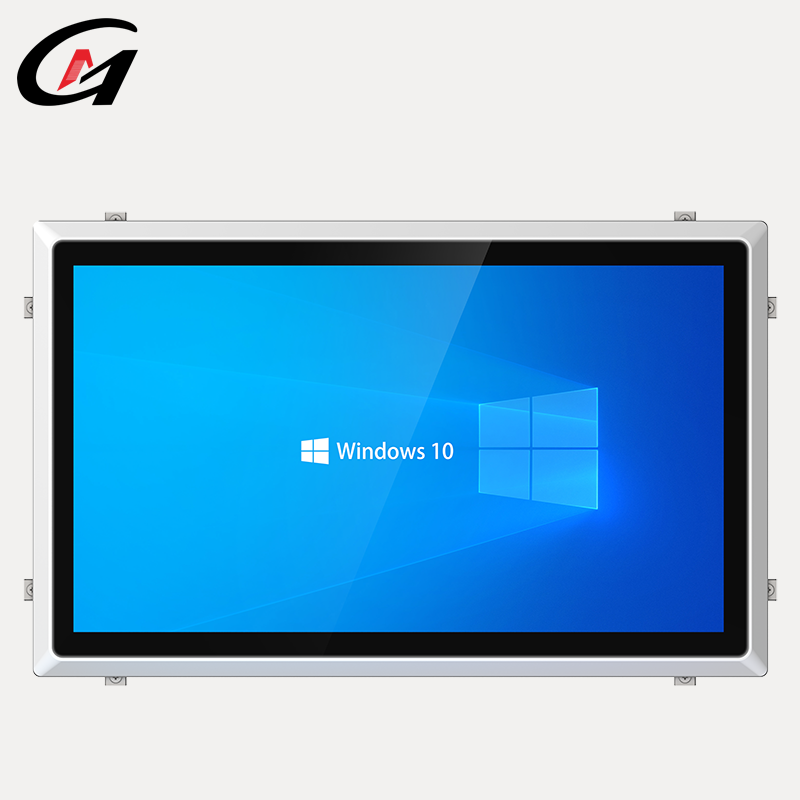

Display

Panel Size: 21.5” TFT widescreen (16:9)

Resolution: 1920 × 1080 (Full HD)

Brightness: 300 cd/m² (optional)

MTBF: 50,000 hours

Touchscreen

Type: 10-point capacitive G+G (optional resistive)

Response Time: < 8ms

Accuracy: ≤ 2mm

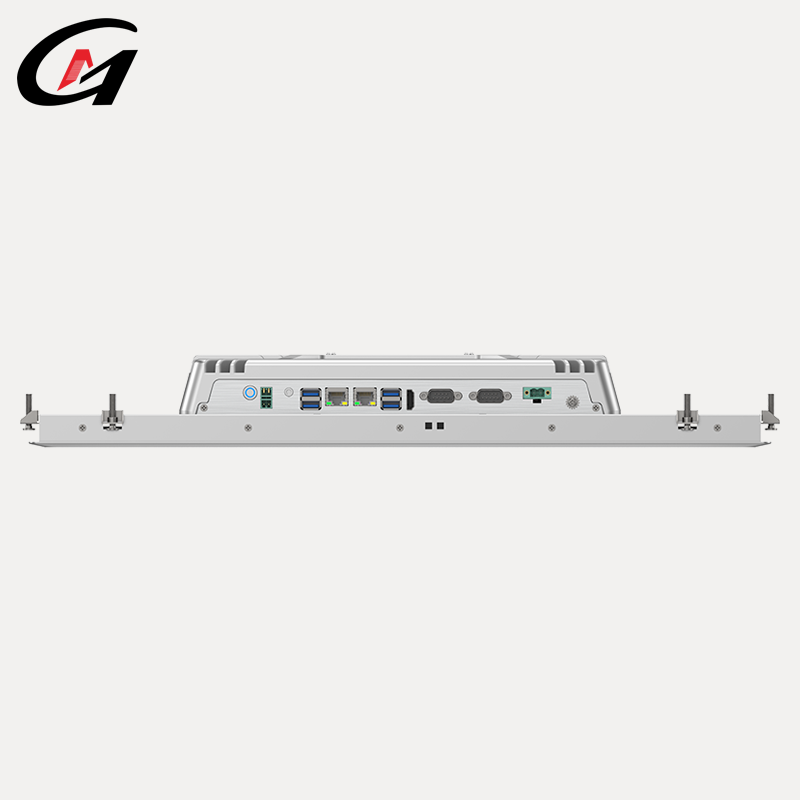

I/O Ports

USB: 4 × USB 3.0

LAN: 2 × Gigabit LAN

COM: 2 × COM (expandable up to 6)

HDMI: 1 × HDMI

Audio: 1 × 2-in-1 Audio Jack

DC-IN: 1 × Phoenix 2-pin DC input

Remote: 1 × Remote switch

Power: 1 × Power button

Expansion

M.2 Key-E 2230: Supports WiFi + Bluetooth

GPIO (optional): 10-pin

Power

Input: DC 12V (default), optional 9V–36V wide voltage

Boot: Power button + auto-power-on support

Mechanical

Enclosure: Full aluminum die-cast, tempered glass front

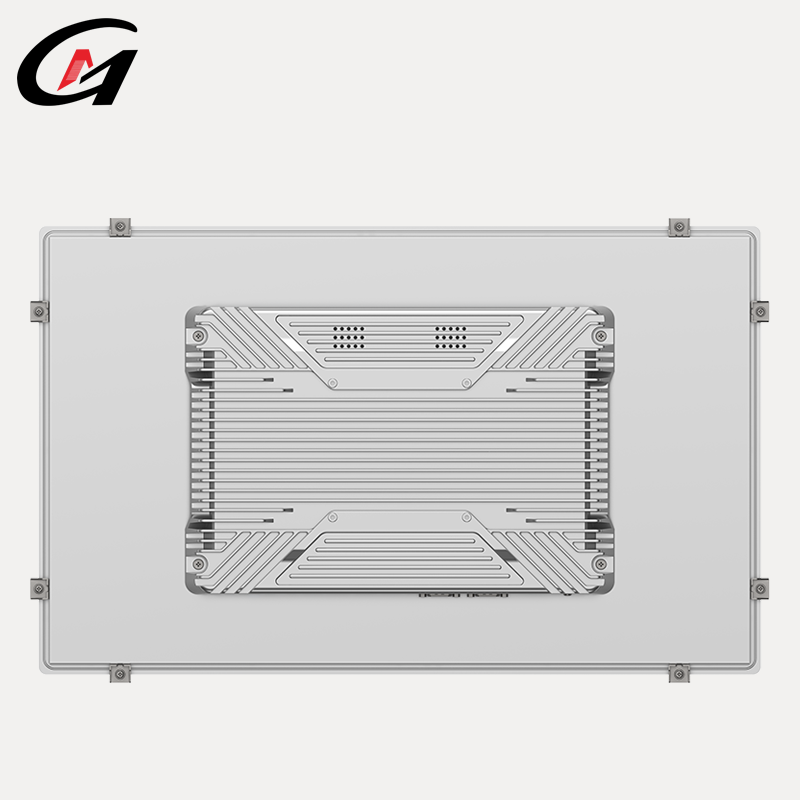

Rear Cover: Fully sealed aluminum

Cooling: Fanless passive heat dissipation

Mounting: Embedded / Wall-mount / Desktop bracket

Cutout Size: 525mm × 321mm

Thickness: Approx. 68 mm

Weight: Net ≈ 6.0 kg / Gross ≈ 6.5 kg

Environmental

Operating Temperature: -10°C to 60°C (14°F to 140°F)

Storage Temperature: -40°C to 80°C (-40°F to 176°F)

Humidity: 10% – 95% @ 40°C, non-condensing

OS Support

6th/7th Gen: Windows 7 / 10 / 11 / Linux

11th/12th/13th Gen: Windows 11 / Linux
