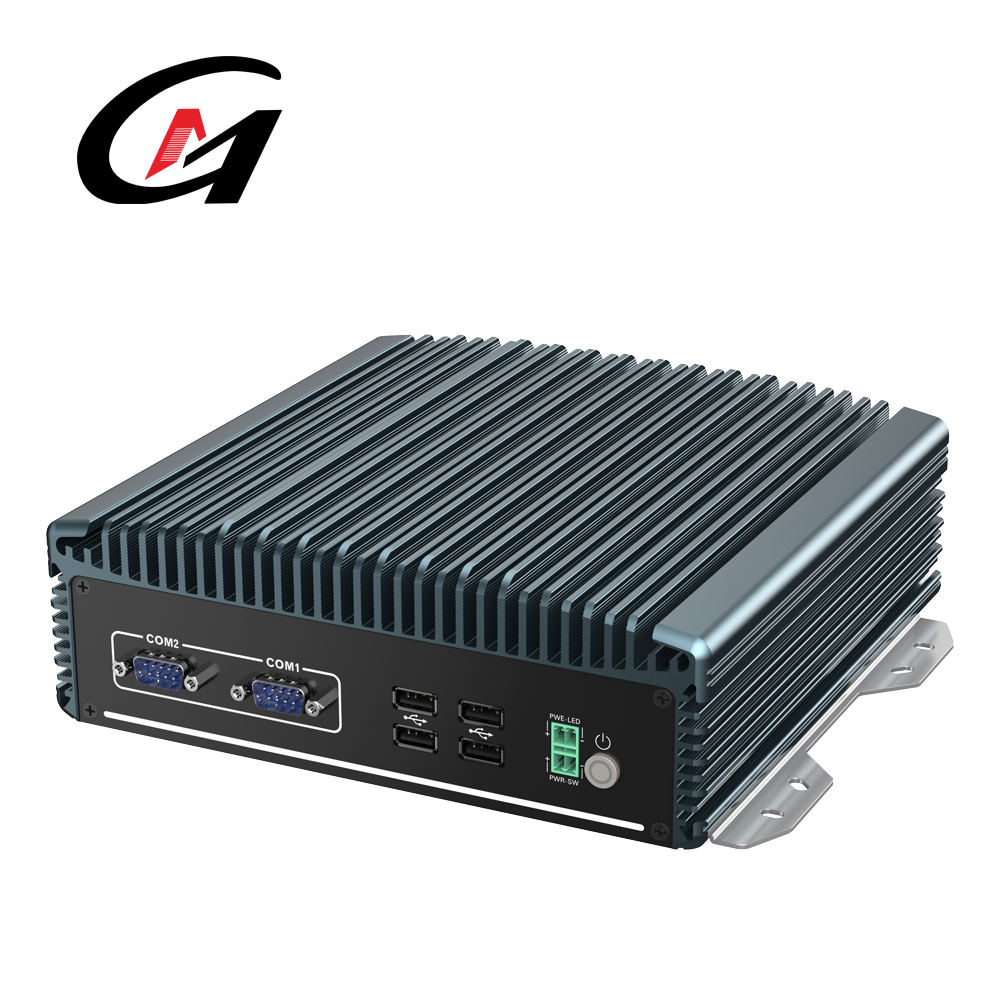

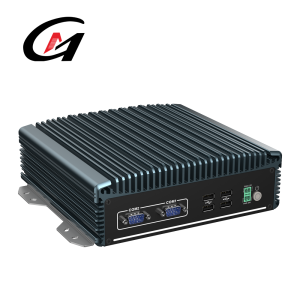

LN-1011D Fanless Industrial Box PC
The LN-1011D is a fanless, rugged industrial box PC designed for deployment in harsh environments such as dust-heavy factories, industrial automation stations, and edge computing applications. Built with a fully enclosed aluminum alloy chassis and integrated passive cooling fins, it offers excellent protection against dust, vibration, and thermal stress while ensuring silent and stable operation.
This compact and durable device supports Intel® 4th to 8th generation Core™ i3/i5/i7 processors with a TDP of 20W, making it ideal for applications that require strong performance with low power consumption. The system supports flexible storage and memory options with a DDR4 SO-DIMM slot (up to 16GB) and both M.2 and 2.5-inch SATA interfaces.
The LN-1011D provides a wide range of I/O connectivity including HDMI, VGA, dual LAN, up to 6 USB ports, and 6 COM ports. Additionally, it includes a Mini PCIe slot for 3G/4G/WiFi modules and a SIM card slot, enabling diverse network access methods. The system supports DC 12V input by default and offers optional wide voltage input (9–36V) for broader industrial compatibility.
It supports multiple mounting options such as embedded, wall-mounted, and desktop installation, and is compatible with Windows 10, Windows 11, and Linux systems. With features like remote switch interface and auto power-on by signal, the LN-1011D is a highly reliable platform for long-term industrial deployment.
Key Specifications
- Processor: Intel® Core i3/i5/i7, 4th–8th Gen, TDP 20W
- Memory: 1× DDR4 3200MHz SO-DIMM, up to 16GB
- Storage: 1× M.2 2280 (SATA), 1× 2.5" SATA SSD
- Display Interfaces: 1× HDMI 2.0, 1× VGA

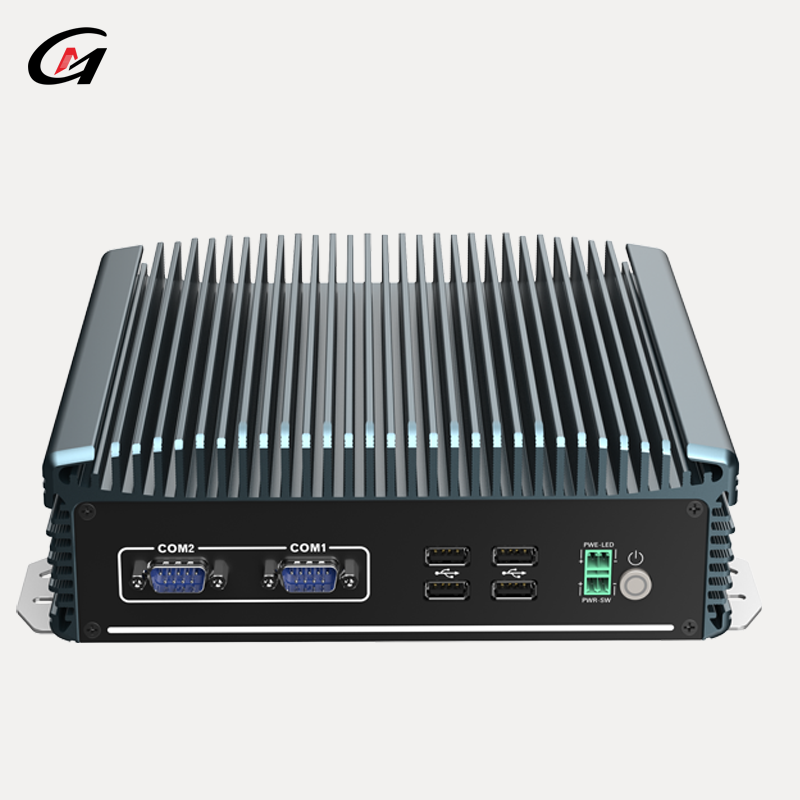

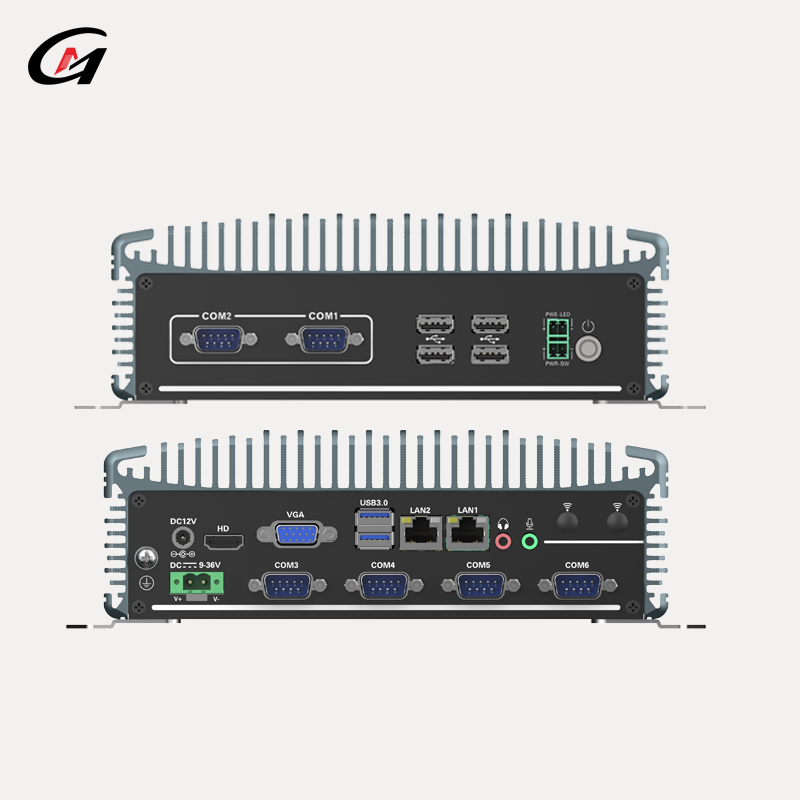

- Front I/O: 1× Power switch, 4× USB, 2× COM

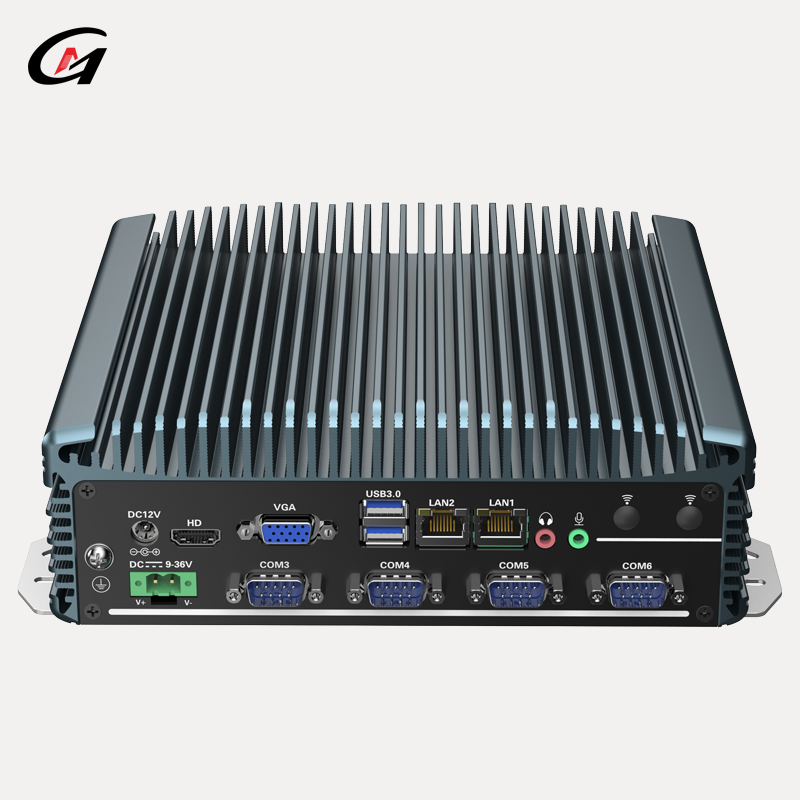

- Rear I/O: 2× LAN, 2× USB 3.0, 4× COM, 1× Audio, 1× DC input, 2× Wi-Fi antenna holes
- Expansion: 1× Mini PCIe (WIFI/3G/4G), 1× 8-bit GPIO, 1× TPM2.0 (internal)
- Power Input: DC 12V (default), optional DC 9–36V wide voltage input
- Operating Temperature: -10°C to 60°C (14°F to 140°F)
- Storage Temperature: -40°C to 80°C (-40°F to 176°F)
- Humidity: 10% to 95% RH (non-condensing)
- Installation: Embedded / Wall-mounted / Desktop
- Dimensions: 215 × 210 × 72 mm
- Weight: Net ≈ 2.2 kg / Gross ≈ 2.8 kg
- OS Support: Windows 10 / Windows 11 / Linux
- Boot Method: Switch start, supports auto power-on via signal
