N1010 fanless compact mini IPC

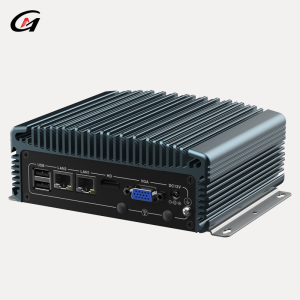

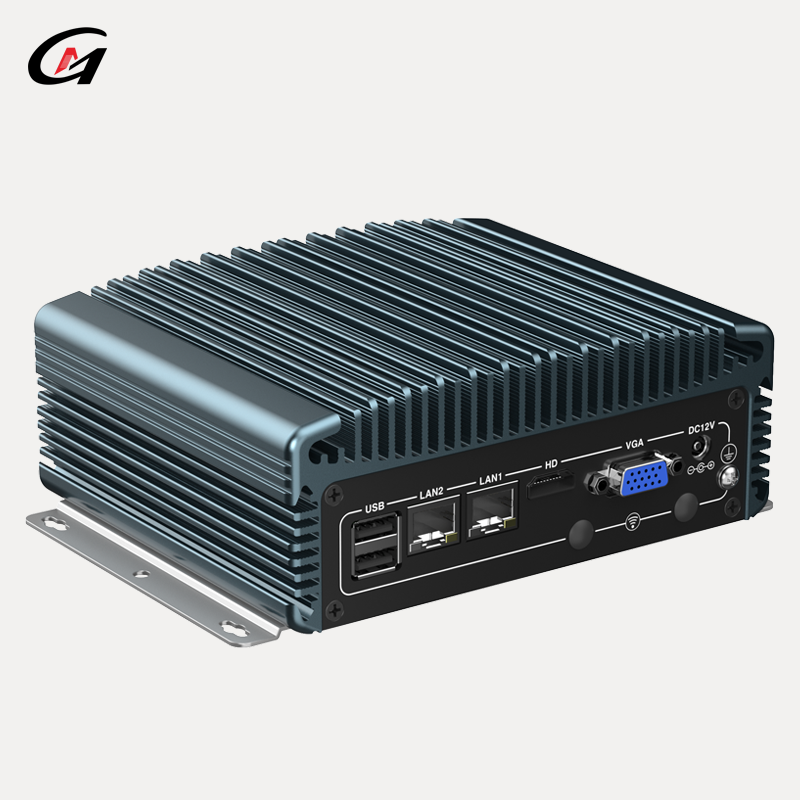

LN-1010 Fanless Industrial PC

The LN-1010 is a high-performance embedded industrial computer built to deliver reliable operation in demanding industrial environments. Designed with a rugged and fully enclosed aluminum chassis, the device features a fanless passive cooling system that ensures silent operation while maintaining excellent thermal performance.

Thanks to its compact size and strong environmental adaptability, the LN-1010 is an ideal solution for space-constrained scenarios such as industrial control cabinets, mobile equipment, vehicle-mounted terminals, and edge computing gateways. It supports multiple installation methods, including embedded, wall-mounted, and desktop configurations, offering flexibility for various deployment needs.

Powered by Intel 4th to 7th generation Core processors, the LN-1010 offers dependable computing performance with low power consumption (TDP 15W). It supports up to 16GB DDR4 memory and provides dual storage options through mSATA and SATA 3.0 interfaces, enabling fast system operation and ample data storage.

In terms of connectivity, the LN-1010 includes rich I/O interfaces such as HDMI, VGA, dual LAN ports, USB and COM ports, and a dedicated Mini PCIe slot for wireless modules (WiFi/3G/4G), along with a SIM card slot. This allows seamless integration into IoT applications, industrial networks, or remote data acquisition systems.

Designed for 24/7 stability, the system operates reliably within a wide temperature range of -10°C to 60°C, and supports auto power-on via incoming signal. Its vibration-resistant, dustproof enclosure is ideal for harsh conditions such as manufacturing lines, outdoor cabinets, or vehicle-mounted installations.

Whether you're building a smart IoT gateway, edge computing node, machine control platform, or custom industrial solution, the LN-1010 offers the right balance of performance, durability, and customization.

Key Specifications

• Processor: Intel 4th/5th/6th/7th Gen, TDP 15W
• Memory: 1× DDR4 SO-DIMM, up to 16GB
• Storage: 1× mSATA, 1× SATA 3.0 (supports 2.5" HDD/SSD)
• Display Interfaces: 1× HDMI 2.0, 1× VGA

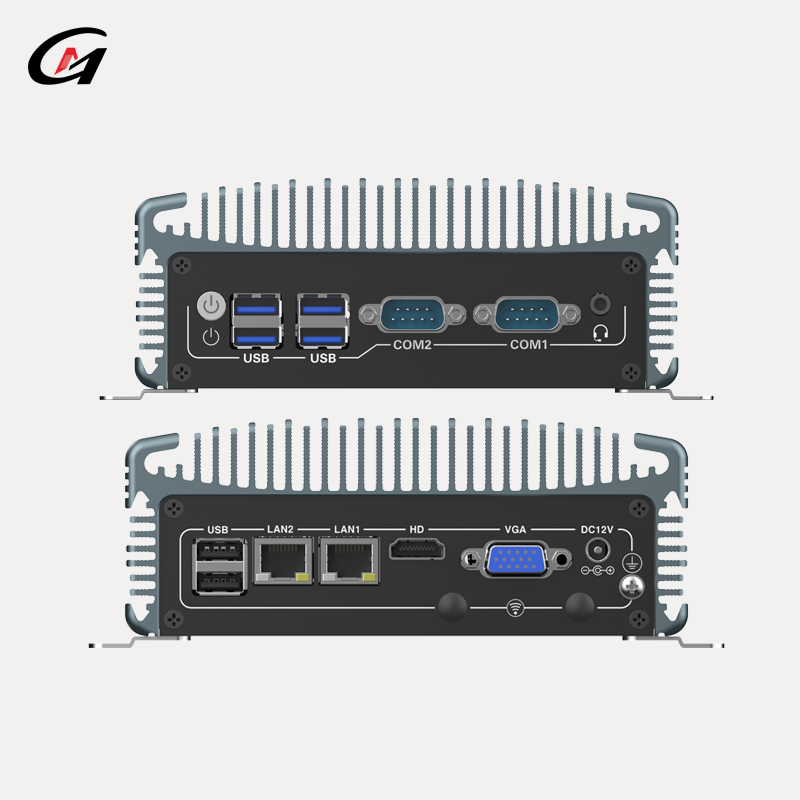

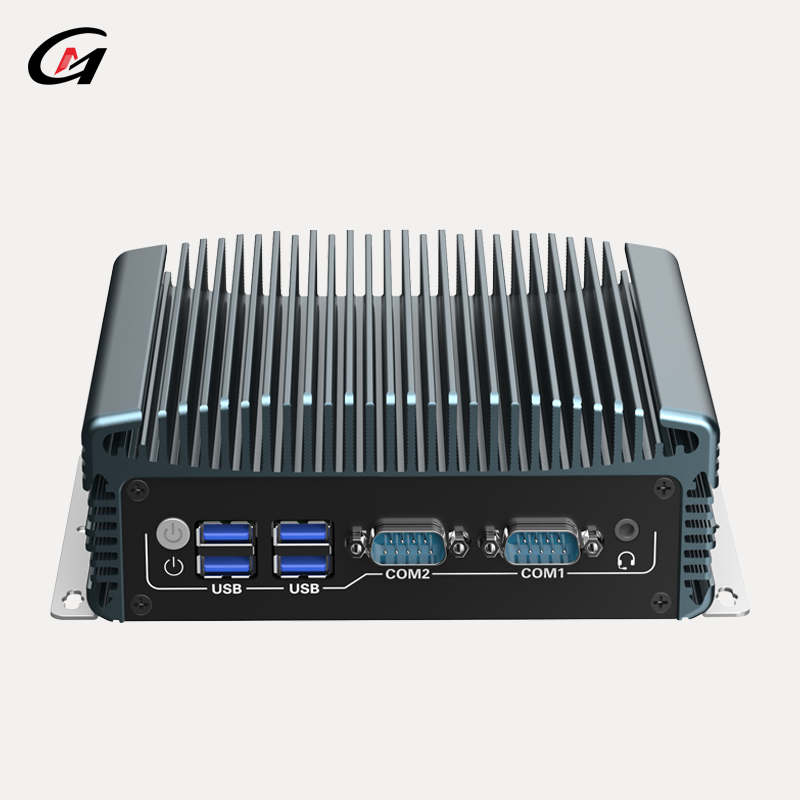

• Front Interfaces: Power switch, 4× USB, 2× COM (RS232), Audio

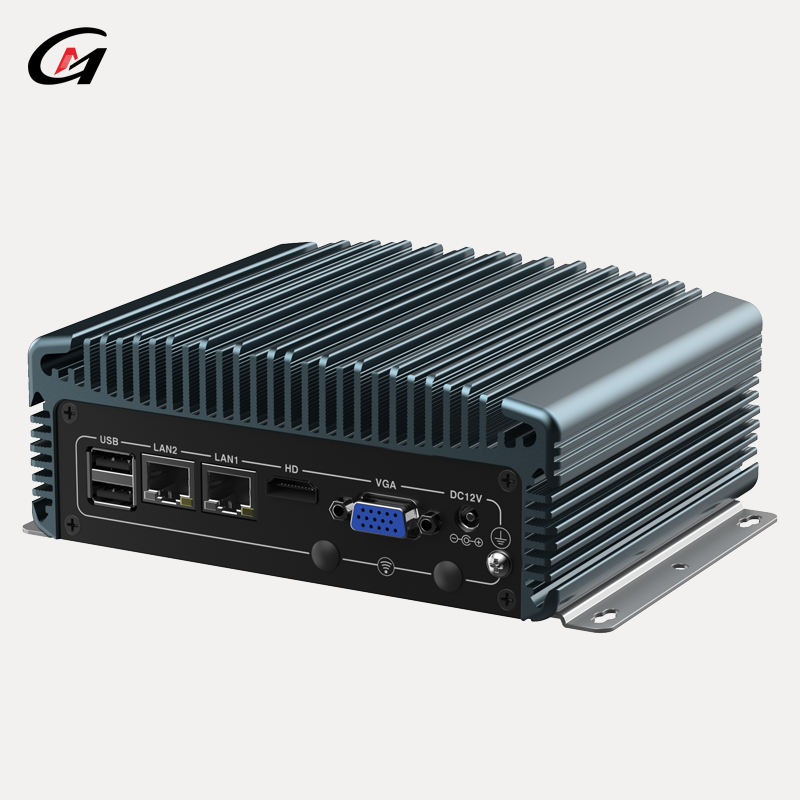

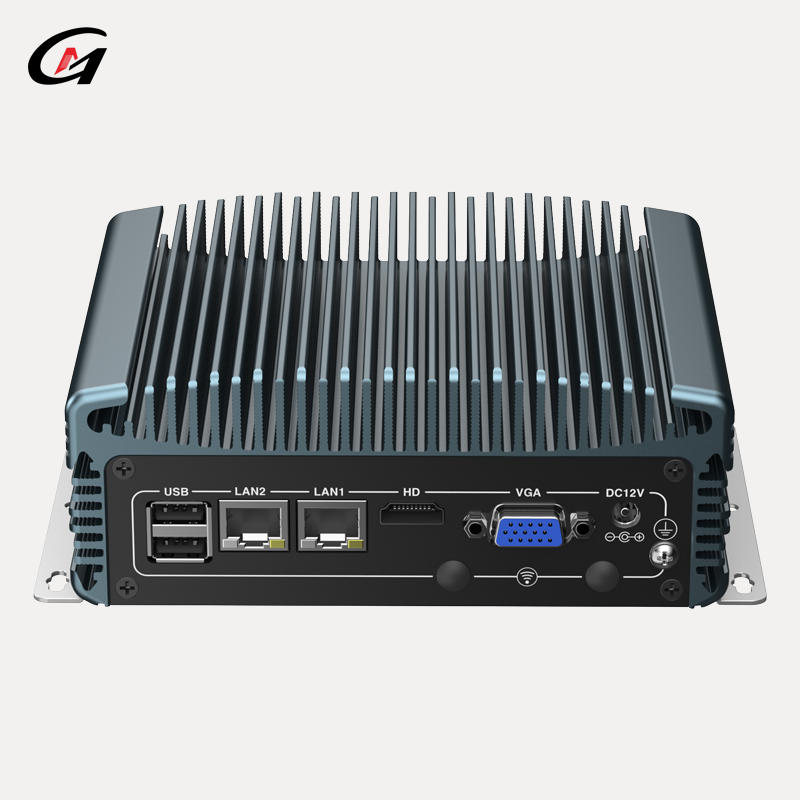

• Rear Interfaces: 2× USB, 2× LAN, HDMI, VGA, DC power input
• Expansion: 1× Mini PCIe (WiFi/4G), 1× GPIO (8-bit)
• Power Input: DC 12V, ≥45W
• Operating Temperature: -10℃ to 60℃
• Storage Temperature: -40℃ to 80℃
• Humidity: 10% to 95% (non-condensing)
• Mounting Methods: Embedded / Wall-Mount / Desktop
• Dimensions: 155 × 128 × 60 mm
• Weight: Net ≈ 1.8 kg, Gross ≈ 2.3 kg
• OS Support: Windows 10, Windows 11, Linux
• Special Features: Auto power-on via signal, vibration-resistant, dustproof fanless design

Customization Support

We provide flexible customization services for bulk or project orders, including tailored CPU/RAM/storage configurations, expanded I/O ports, custom BIOS, OEM/ODM branding, wide-voltage adaptation, and specialized OS images. Please contact us with your project details, and our engineering team will provide personalized support.
