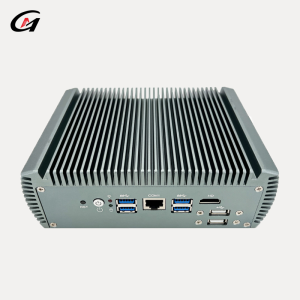

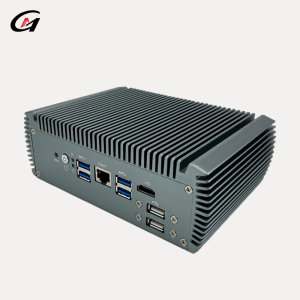

LN-1003 Fanless Industrial Box PC
The LN-1003 is a high-performance fanless embedded Box PC designed for industrial networking, edge computing, and secure gateway applications. Powered by onboard 11th Gen Intel® Tiger Lake-U processors, it delivers exceptional multi-core performance and energy efficiency.
With its rugged aluminum alloy chassis and passive heat dissipation structure, the LN-1003 operates reliably in harsh environments including dust, vibration, and electromagnetic interference. The fanless design ensures silent operation and long-term stability.
The system features six Intel 2.5G LAN ports, making it ideal for firewall, router, SD-WAN, and industrial gateway applications. It offers extensive I/O connectivity including HDMI 4K output, multiple USB 3.0/2.0, COM (RJ45), GPIO, and MiniPCIe expansion for WiFi/4G/3G modules.
Storage flexibility is guaranteed with both M.2 NVMe PCIe x4 and 2.5" SATA3.0 support. The device accepts wide voltage DC input (12–19V) and supports automatic power-on upon signal detection, meeting the requirements of 24/7 embedded applications.
Whether deployed in industrial automation, security gateway, IoT edge computing, or smart factory environments, the LN-1003 offers unmatched connectivity, durability, and performance in a compact form factor.
Model：LN-1003 Fanless BOX-PC
CPU：Onboard Intel® 11th Gen Tiger Lake-U processor
Chipset：Intel®
Memory：2× DDR4 SO-DIMM (3200MHz), up to 64GB
Storage：1× M.2 NVMe (PCIe3.0 x4) or SATA3.0 + 1× 2.5" SATA3.0
Display：1× HDMI 2.0 (4096×2160@60Hz, supports 4K)

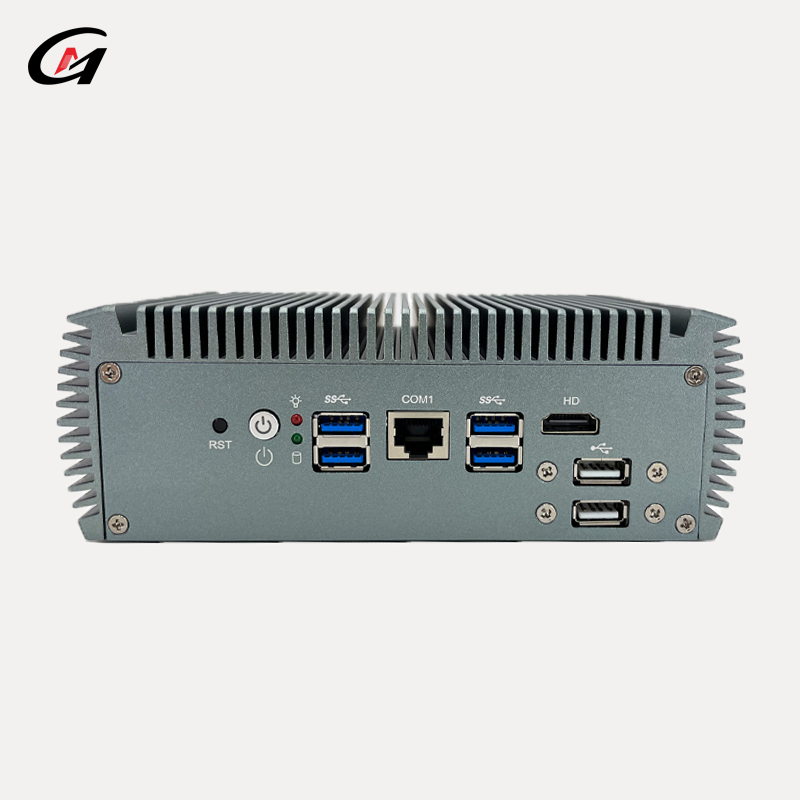

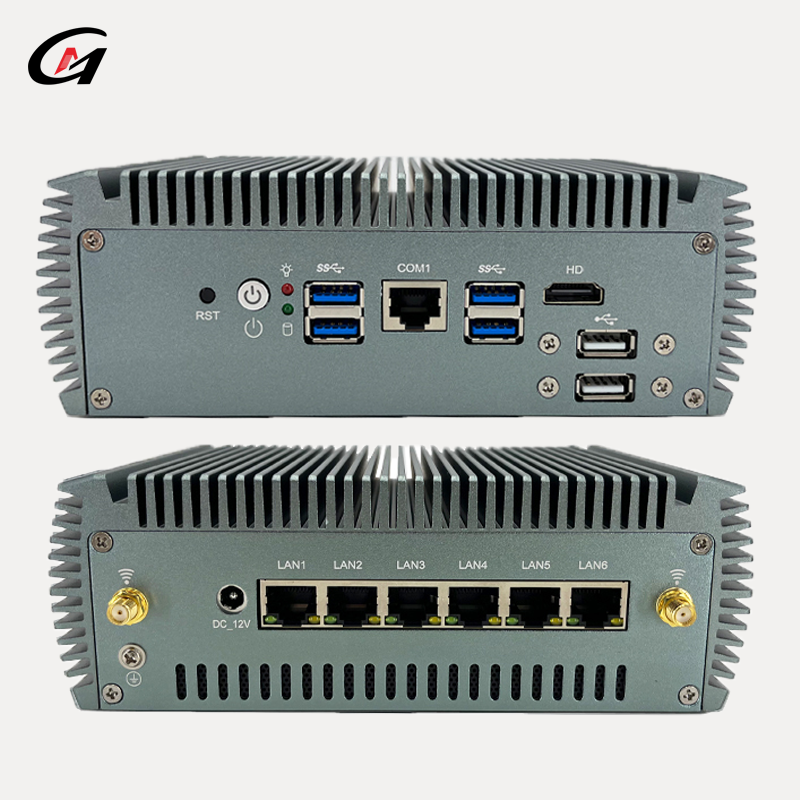

Front I/O：1× Power switch, 1× Reset, 4× USB 3.0, 2× USB 2.0, 1× COM (RJ45), 1× HDMI

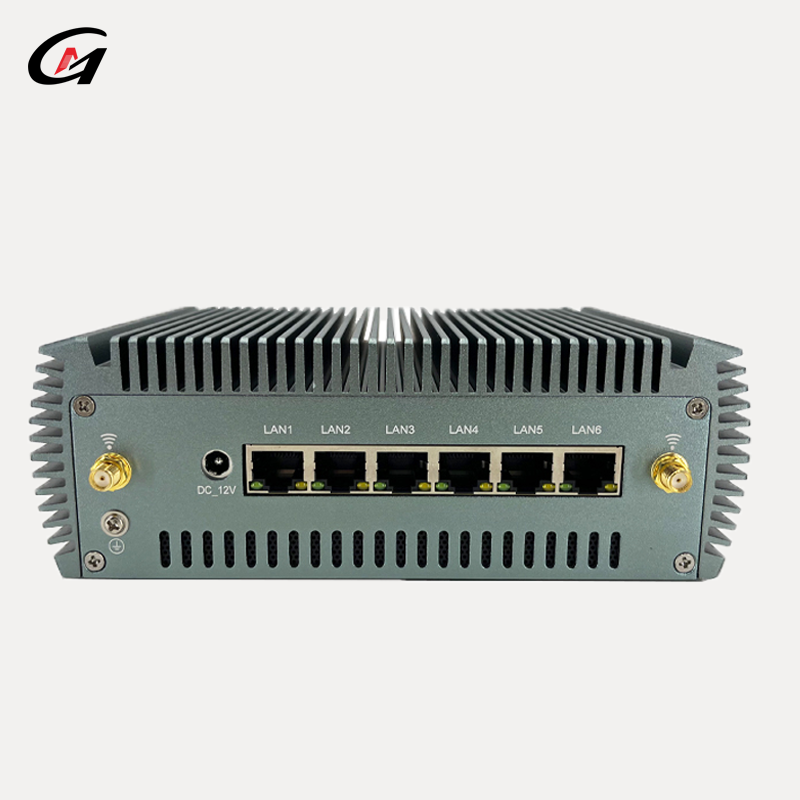

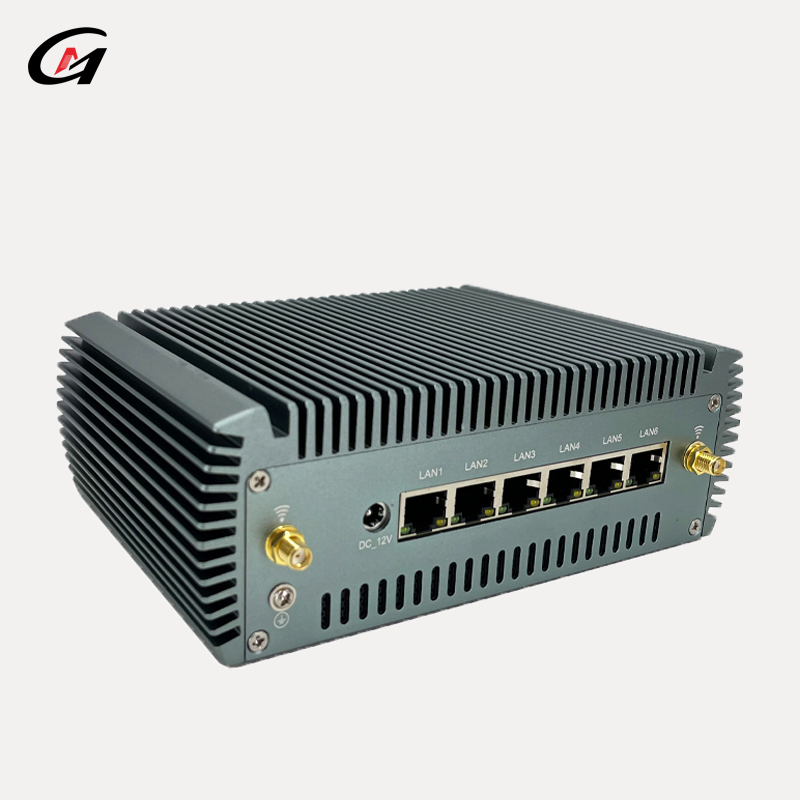

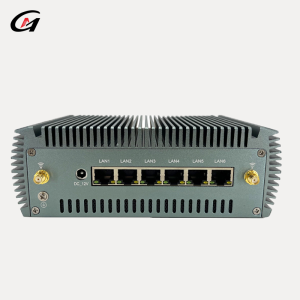

Rear I/O：6× LAN (Intel 2.5G), 1× DC-in
Expansion：1× MiniPCIe slot (PCIe + USB2.0), supports WiFi/4G/3G; 1× GPIO (8-bit)
Power Input：DC 12V–19V (90W adapter)
Operating Temperature：-10°C to 60°C
Storage Temperature：-40°C to 80°C
Humidity：10%–95% RH (non-condensing)
OS Support：Windows 10 / 11, Linux
Mounting：Embedded / Wall-mount / Desktop
Dimensions：182 × 125 × 62.5 mm
Weight：Net ≈ 1.5 kg / Gross ≈ 2.0 kg
Special Features：Fanless, auto power-on via signal, anti-dust, anti-vibration, 6× Intel 2.5G LAN
