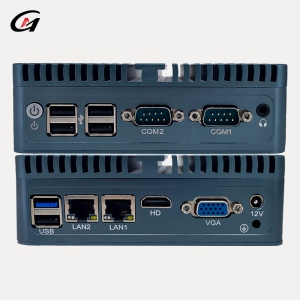

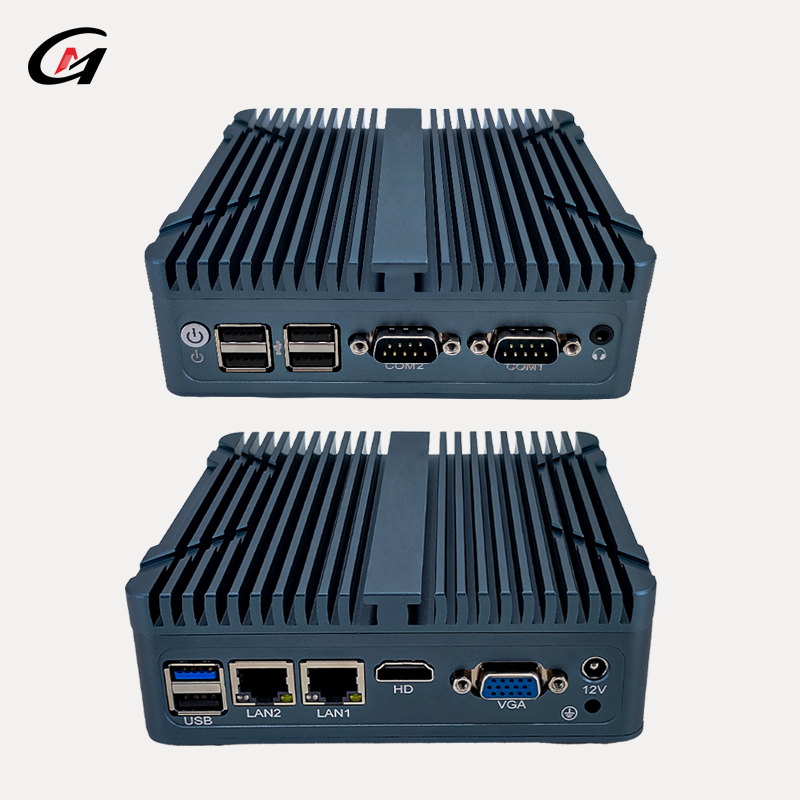

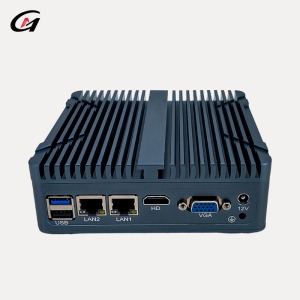

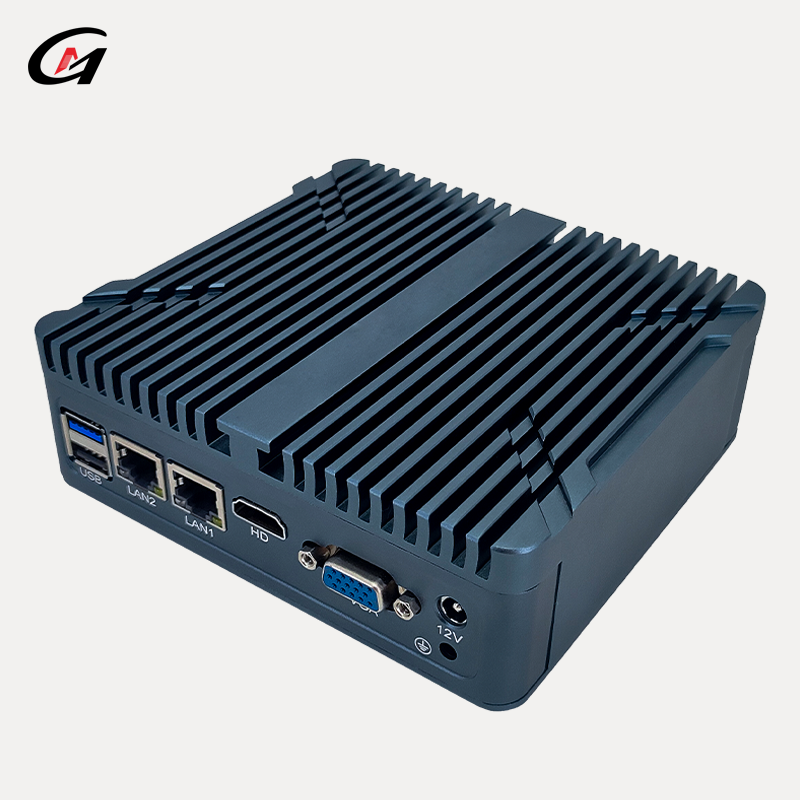

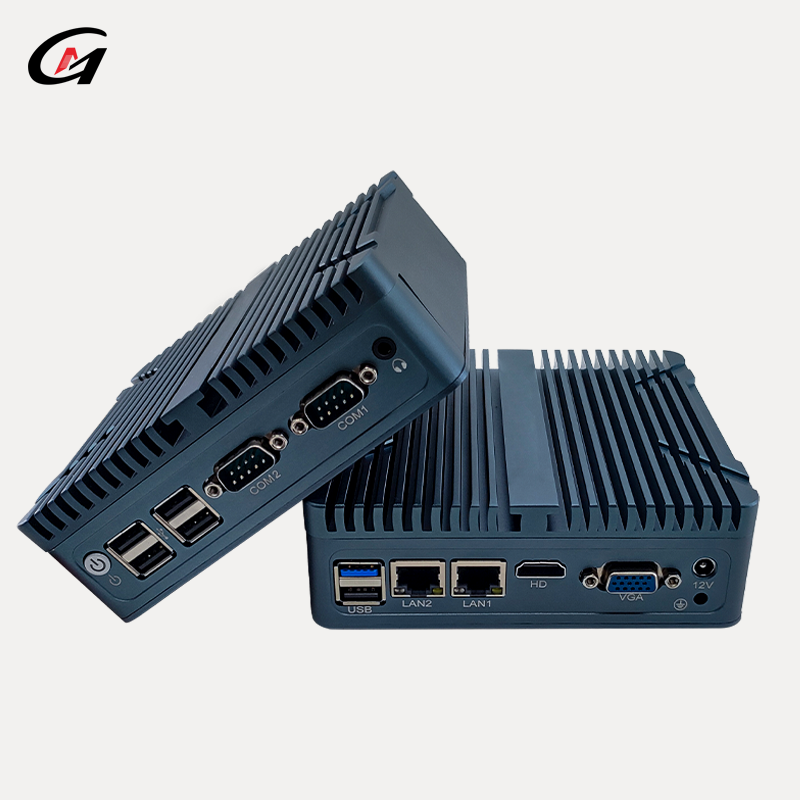

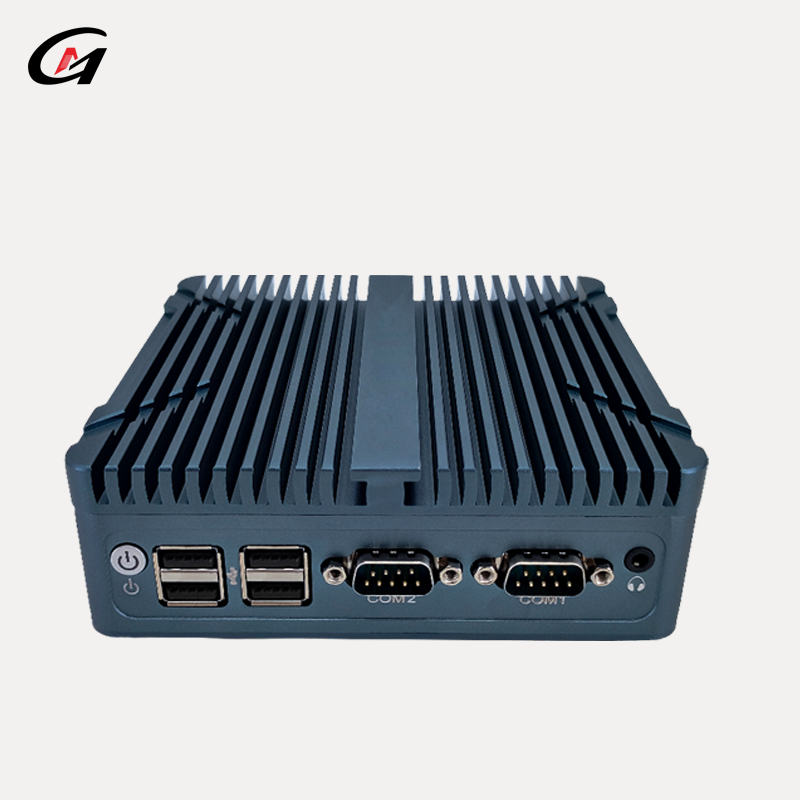

The LN-1002 is a compact and rugged fanless industrial mini PC designed for embedded control, edge computing, and smart IoT applications. Powered by an Intel® Celeron J1900 2.0GHz quad-core processor, it delivers stable performance in space-constrained and demanding industrial environments.
Its fully enclosed aluminum alloy chassis with integrated fin heat sinks ensures excellent passive cooling, dustproofing, and vibration resistance. With support for wide environmental conditions and rich I/O interfaces, LN-1002 adapts well to factory automation, data gateways, and embedded monitoring systems.
The system offers dual HDMI, VGA output, dual LAN ports, multiple USB and COM interfaces, and Mini PCIe expansion for wireless modules (WiFi/4G). It supports mSATA and 2.5-inch SSDs, as well as VESA/wall/desktop mounting options.
If you need a compact and customizable industrial PC with low power consumption and high reliability, LN-1002 is your ideal choice.
Model：LN-1002 Fanless BOX-PC
CPU：Intel® Celeron J1900 / Quad-Core 2.0GHz
Memory：1× DDR3L SO-DIMM slot, up to 8GB
Storage：1× mSATA + 1× 2.5-inch SATA bay
Display：2× HDMI, 1× VGA
Front I/O：4× USB2.0, 2× COM, 1× Audio
Rear I/O：2× USB3.0, 2× LAN, 1× HDMI, 1× VGA, 1× DC-IN
Expansion：1× Mini PCIe (WIFI/4G), 1× GPIO (8bit)
Power Input：DC 12V
Operating Temperature：-10°C to 60°C
Storage Temperature：-40°C to 80°C
Humidity：10%–95% RH (non-condensing)
Installation：Wall-mounted / Embedded / Desktop
Dimensions：126 × 127 × 45 mm
Weight：Net 0.8kg / Gross 1.5kg
OS Support：Windows 10 / Windows 11 / Linux
Special Features：Fanless design, compact build, auto power-on, dustproof, anti-vibration
